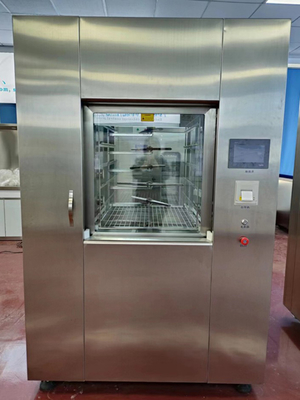

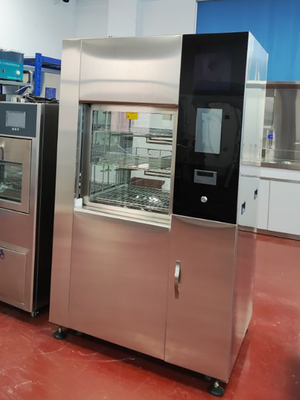

600L large scale pass through door automatic instrument washer sterilizer

The Central Sterile Washer is mainly used for automatic spray cleaning, rinsing, boiling disinfection, oiling, rust prevention, and drying. The whole process is fully automated and does not require staff to be on duty.

Automatic Washer Disinfector Parameter:

Endoscope Washer Disinfector Details

Washer Disinfector with Drying Features:

1. High-Quality Construction: Made entirely of 304 stainless steel, including the cabin, cleaning basket, and outer decorative panels, ensuring durability and hygiene.

2. Large Capacity: Accommodates 2 layers of cleaning trolleys, suitable for various surgical instruments.

3. Insulated Cabin: Equipped with 10mm sound-absorbing, high-temperature-resistant insulation for safety and efficiency.

4. Automatic Glass Door

   Door opening mode and safety protection: automatically open the door, double toughened coating double door channel window transparent glass door body, sound insulation, door barrier safety protection device: using laser infrared sensor, the door in the process of switching encountered obstacles, will automatically stop, on the screen display obstacles.

5. Advanced Control System: PLC programmable system with 7-inch LCD touchscreen, 24 customizable programs, real-time display of temperature, time, consumables, and alarms; one-button start for convenience.

6. Data Printing: Automatically records and prints process data and A₀ values for documentation.

7. Efficient Cleaning Cycle: Completes cleaning, rinsing, disinfection, and drying in approximately 35 minutes.

8. Automatic Enzyme Dosing: Built-in metering pump for precise enzyme addition; system alarms for low dosage and prevents operation until resolved.

9. Self-Diagnosis System: Auto fault detection with code display, audible alarm, troubleshooting guide, and record-keeping.

10. Premium Components: Key parts like water pump, drain pump, and switches are from internationally recognized brands.

11. Comprehensive Disinfection: 93°C high-temperature disinfection, with anti-rust oil added automatically, meeting national hygiene standards.

12. Hot Air Drying: Powerful adjustable hot air drying system ensures complete drying of instruments before sterilization.

13. 360° Spraying System: High-pressure, all-direction spray ensures thorough and dead-angle-free cleaning.

Application of Washer Disinfector with Drying :

• Fully automatic washer-disinfector is widely used in hospitals, clinics, and laboratories for the efficient cleaning and disinfection of surgical instruments, medical devices, glassware, and other reusable items. Mainly suitable for the cleaning, disinfection, oiling, and drying of equipment in the hospital stomatology department, the comprehensive dental clinic, the dental clinic and supply room, and the operating room.



• Typical applications include:

  Central Sterile Supply Departments (CSSD)

  Operating rooms and endoscopy units

  Dental and ophthalmic clinics

  Laboratory and research facilities

Our Factory

Why Choose Us?

1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

1. Q: What are your payment terms?
   A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
2. Q: What is the delivery time?
   A: About 7-15 working days for one unit.
3. Q: What certifications does the sterilizer have?
   A: CE, ISO 13485, ISO 9001.
4.  Q: What warranty and after-sales support do you offer? Is global support available?
   A: 12-month warranty from installation. We offer:
   ① Remote technical support via phone, email, and video.
   ② Operation & maintenance training (manuals, online/on-site).
   ③ Ample spare parts stock.
   24/7 technical response guaranteed.
5. Q: How do you ship the fully automatic washer disinfector?
   A: Ship by Sea or Air
   ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
   ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
6. Q: What trade terms do you support?
   A: EXW, FOB, CFR, CIF, and DDP.
7. Q: Are you a factory or a trading company?
   A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Related Products

In addition to delivering a fully automatic washer-disinfector for consistent and high-efficiency instrument cleaning, we also offer a wide selection of ultrasonic cleaning units specifically engineered for hospitals, surgical centers, and laboratory settings.

For the sterilization phase, we provide a versatile range of devices including space-saving tabletop sterilization autoclaves, vertical vacuum steam sterilizers, horizontal high-throughput autoclave systems, and mobile compact sterilizers for flexible point-of-care use.

For instruments requiring low-temperature sterilization, we also supply vapor-phase hydrogen peroxide (VPHP) sterilizers and ethylene oxide sterilizing chambers, both designed to ensure deep, non-corrosive sterilization for sensitive instruments, tubing, and electronics.
