Door Structure: | Handwheel Door | Number Of Baskets: | 2 Pcs Sterilizing Baskets |
---|---|---|---|
Display: | LED Display | Data Recording: | Printer Optional |
Material: | Stainless Steel 304 | Drying Function: | Yes |
Autoclave Type: | Internal Circulation Autoclave | Application: | Glassware, Fabrics, And Culture Media |
Working Temp.: | 134℃ | Working Press.: | 0.22Mpa |
Highlight: | Auto Shutoff Vertical Autoclave Machine,Low Water Protection Vertical Autoclave Machine,Low Water Protection Steam Sterilizer Autoclave |

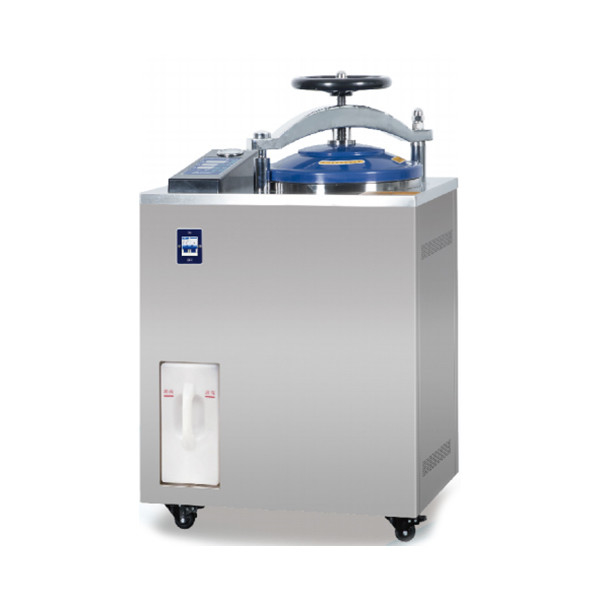

This multifunctional Automatic Internal Cycle With Drying Vertical Autoclave mainly used in hospital, laboratories, universities and other institutes where users need to sterilize temperature resistance items. It is ideal equipment for surgical instruments, fabrics, glasses, culture media etc.
Model |
STV-C35 |
STV-C50 |
STV-C75 |
STV-C100 |
Volume |
35L |
50L |
75L |
100L |
Power |
3.5kW |
3.5kW |
4.5kW |
4.5kW |
Voltage |
AC 220V,50HZ |
|||
Rated working pressure |
0.22Mpa |
|||
Rated working temperature |
134℃ |
|||
Sterilization temperature |
50℃~134℃ |
|||
Sterilization time setting range |
4~120 min |
|||
Drying time setting range |
0~240min |
|||
Chamber volume |
Ø350×400 |
Ø350×525 |
Ø400×625 |
Ø450×650 |
Bucket dimension |
Ø330×320 |
Ø330×460 |
Ø380×560 |
Ø420×540 |
Basket dimension(optional) |
Ø320×350 |
Ø320×240×2 |
Ø360×280×2 |
Ø410×300×2 |
Outer dimension |
698×498×940 |
698×498×1110 |
770×570×1185 |
788×588×1255 |
Packing size (L× W× H )mm |
790×610×1130 |
800×600×1230 |
840×610×1310 |
870×650×1380 |
Gross/net weight |
125/110KG |
130/112KG |
145/114KG |
156/129KG |
Hand Wheel and Quick Opening Structure
Easy operation with a manual hand wheel and fast-access door mechanism for efficiency and safety.
Internal Steam Circulation System
Ensures uniform temperature distribution for reliable and effective sterilization.
High-Quality Stainless Steel Chamber
Durable and corrosion-resistant 304 stainless steel construction for long-lasting performance.
Integrated Drying Function
Supports both sterilization and drying in one cycle for enhanced convenience.
Microcomputer Control Panel
Fully automatic control with user-defined sterilization parameters for flexible operation.
Safety Interlocking Device
Prevents door opening under pressure, ensuring operator safety during use.
Digital Display with Touch Buttons
Modern interface for intuitive operation and real-time monitoring of sterilization status.
Standard Test Interface Port
Enables professional testing and validation of sterilization cycles.
Self-Expanding Silicone Seal
High-quality automatic sealing ring ensures airtight chamber integrity during operation.
Multiple Safety Protections
Over-temperature protection
Over-pressure self-discharge
Low water level alarm
Anti dry-burning protection
Comes with Stainless Steel Bucket or Basket
For flexible loading of instruments and materials.
Buzzer Reminder and Auto Shutoff
Alerts when sterilization is complete and stops operation automatically.
Automatic Cold Air Discharge and Steam Exhaust
Fully automated post-cycle functions for user convenience and safety.
Optional Feature: External Printer
For cycle documentation and compliance record keeping.
