Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer

Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer
Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer

Large Image :  Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-H35 to STV-H100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer

Description
Door Structure: Handwheel Door Number Of Baskets: 2 Pcs Sterilizing Baskets
Display: LED Display Data Recording: Printer Optional
Material: Stainless Steel 304 Drying Function: Optional
Water: Automatic Filling Optional Spare Parts: Sealing Door, Heating Pipe
Working Temp.: 134℃ Working Press.: 0.22Mpa
Highlight:

Drying Vertical Autoclave Machine

,

Stainless Steel Vertical Autoclave Machine

,

Stainless Steel multi function steam sterilizer

Multifunctional Steam Sterilizer With Drying Handwheel Door Vertical Autoclave

This vertical pressure steam sterilizers autoclave are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

STV-H Autoclave Parameter:

Model

STV-H35

STV-H50

STV-H75

STV-H100

Volume

35L

50L

75L

100L

Power

3.5kW

3.5kW

4.5kW

4.5kW

Voltage

AC 220V,50HZ

Rated working pressure

0.22Mpa

Rated working temperature

134

Sterilization temperature

50℃~134

Sterilization time setting range

4~120 min

Drying time setting range

0~240min

Chamber volume

Ø350×400

Ø350×525

Ø400×625

Ø450×650

Bucket dimension

Ø330×320

Ø330×460

Ø380×560

Ø420×540

Basket dimension(optional)

Ø320×350

Ø320×242

Ø360×280×2

Ø410×300×2

Outer dimension

498×498×940

498×498×1110

570×570×1185

588×588×1255

Packing size

(L× W× H )mm

580×630×1130

580×630×1230

630×680×1290

690×650×1410

Gross/net weight

79/58KG

106/80KG

120/90KG

133/106KG

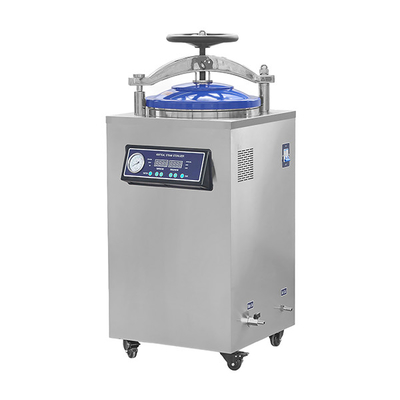

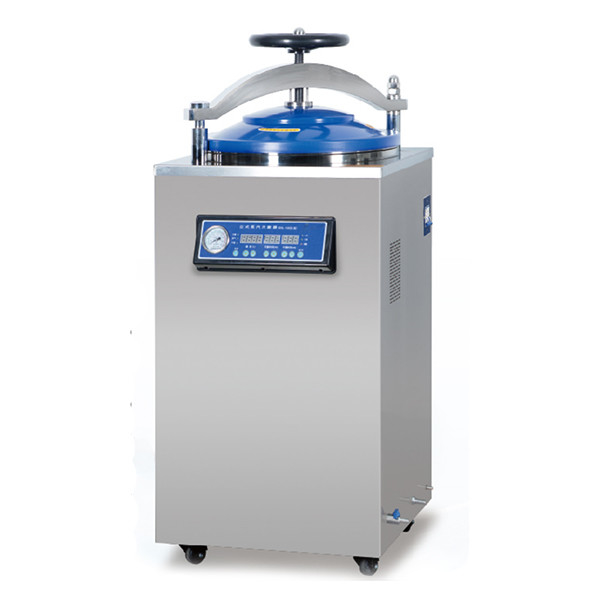

The STV-H  Model Autoclave Detailed Pictures:

Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer 0

Handwheel Vertical Steam Autoclave Features:

  • Structure & Design
    • The vertical steam sterilizer features a hand wheel translation and quick-opening structure for easy operation. Constructed with high-quality stainless steel material, ensuring durability and corrosion resistance. Equipped with a self-expanding sealing system for reliable airtightness. Standard configuration includes a stainless steel bucket or basket, suitable for both medical autoclave and laboratory use.
  • Control System
    • This vertical autoclave sterilizer adopts microcomputer automatic control with customizable sterilization parameters, offering flexible sterilization programs for various needs. Features a digital display with touch button operation for intuitive use. Provides a standard test interface for performance verification and an optional external printer for cycle records, meeting medical and laboratory documentation requirements.
  • Safety & Protection
    • Equipped with a safety interlocking device to prevent accidental opening under pressure. The vertical steam autoclave includes automatic protection functions such as:
       • Over-temperature protection
       • Over-pressure protection
       • Low water level protection
       • Anti dry-burning protection
      Comprehensive design ensures safe sterilization for hospital, clinic, and lab environments.
  • Sterilization & Drying Performance
    • Built-in drying function for medical dressings and surgical kits. Automatic discharge of cold air and automatic steam exhaust after sterilization guarantee effective sterilization results. A buzzer reminder after sterilization and automatic stop further enhance user convenience, making this vertical pressure steam sterilizer ideal for medical instruments and laboratory sterilization.

Applications of Vertical Autoclaves:

  1. Laboratory / Scientific Research:
    Suitable for glassware, culture media, surgical instrument kits (requires matching with instrument baskets), and biological waste (must be processed in accordance with local regulations).
  2. Hospital / Clinic / Medical Facilities:
    Ideal for sterilizing surgical instrument sets, dressing kits, and medical fabrics.
  3. Pharmaceutical / Bioengineering / Food Industry:
    Applied to the sterilization of production containers, laboratory tools, raw materials, and packaging materials (compatibility must be confirmed prior to use).

Our Factory

Drying Vertical Autoclave Machine Stainless Steel multi function steam sterilizer 1

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: Verical autoclave delivery time is about 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support do you offer for the vertical autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the vertical autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a autocalve manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Related Autoclaves:


Besides vertical steam autoclave sterilizer, we also offer a wide range of rectangular chamber steam sterilizer autoclave, Bench top autoclave, rectangular vacuum autoclave, portable autoclave,  and customized sterilization solutions for various industries
