Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

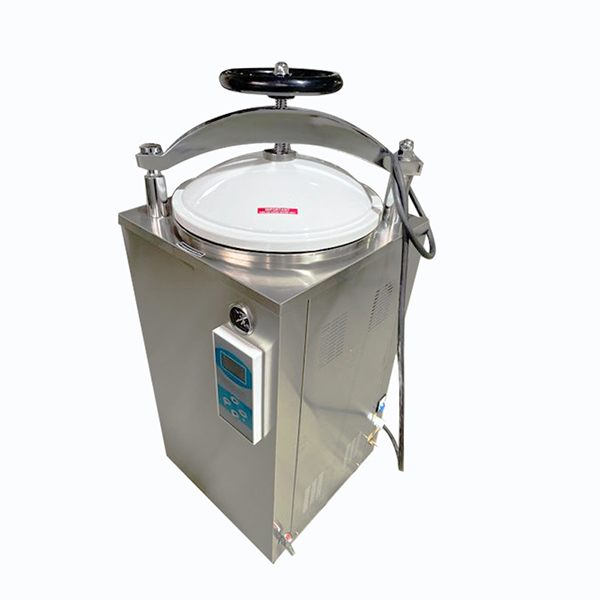

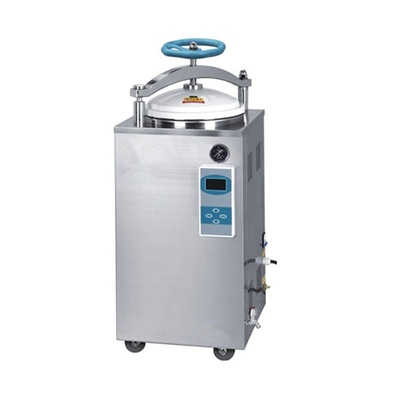

Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave

Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave
Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave

Large Image :  Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-HD35 to STV-HD100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave

Description
Capacity: 35l, 50l,75l,100l Door Structure: Handwheel Door
Number Of Baskets: 2 Pcs Sterilizing Baskets Display: LCD Display
Data Recording: Printer Equiped Material: Stainless Steel 304
Drying Function: Optional Water: Manually Adding
Max Working Temp.: 138℃ Working Press.: 0.25Mpa
Highlight:

Handwheel Door Vertical Autoclave Machine

,

LCD Display Vertical Autoclave Machine

,

LCD Display Pressure Steam Autoclave

Handwheel Door LCD Display Pressure Steam Vertical Autoclave

This vertical pressure steam sterilizers are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

LCD Display Vertical Autoclave Parameter:

MODEL

STV-HD35

STV-HD50

STV-HD75

STV-HD100

Chamber volume

35L

50L

75L

100L

318 x 450mm

340 x 550mm

400 x 600mm

440 x 650mm

Max. working temperature

138

Max. working pressure

0.25Mpa

Heat average

≤±1℃

Timer range

0~99min or 0~99hour59min

Power

2.5Kw/AC220V.50Hz

3Kw/AC220V.50Hz

4.5Kw/AC220V.50Hz

Overall dimension

470x450x1020

520 x 490 x 1150

550x530x1180

580 x 560 x 1290

Transport dimension

540x540x1160

580 x 580 x 1280

610 x 610 x 1320

640 x 640 x 1400

G.W/N.W

84Kg/65Kg

97Kg/78Kg

115Kg/97Kg

135Kg/109Kg



Vertical Autoclave Details

Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave 0

Vertical Steam Autoclave Features:

1. Fully stainless steel SUS304 structure, stainless steel chamber SUS304.
2. Hand wheel type of quick-open door structure.
3. Door safety lock system.
4. Microprocessor control, LCD display of working status: pressure, time, temperature, error code, touch type key.
5. Auto discharge the cool air, and steam discharging automatically after sterilizing.
6. Over temperature and over pressure auto-protection.
7. Safe protection of water is lacking.
8. Self-inflating type seal.
9. Automatically shut off with beep reminding after sterilization.
10. With two stainless steel baskets.
11. Drying function is optional

Safety Device for quick open door autoclave:

1. Safe protection of water lacking
2. The program will be stopped if water level lower than the low limit.
3. The buzzer alarms when a cycle of operation is completed.
4. Over temperature&over pressure auto-protection.
5. Over current protector.
6. Door safety interlock system.
7. Safety valve of auto release against over-pressure.
8. Over current protection.

Application of hand wheel autoclave:

  • Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
  • Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
  • Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

Our Factory

Handwheel Door Vertical Autoclave Machine LCD Display Pressure Steam Vertical Autoclave 1

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support do you offer? Is global support available?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the products?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
