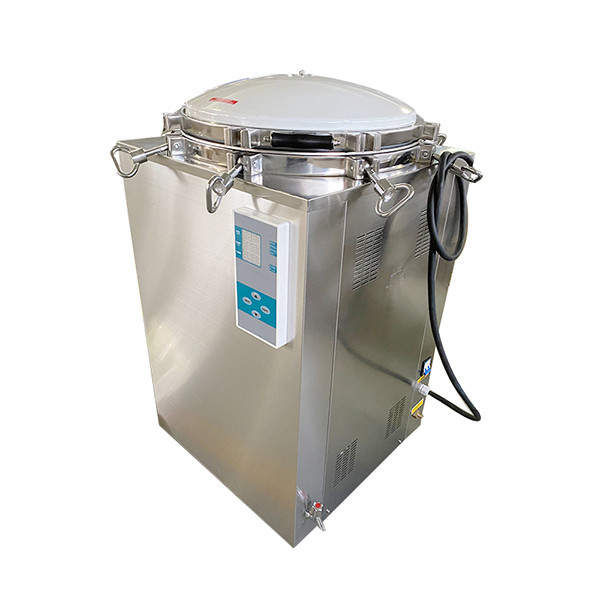

100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization

100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization
100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization

Large Image :  100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-LB100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization

Description
Capacity: 100Liters Door Structure: Bolt Open Door
Number Of Baskets: 2 Pcs Sterilizing Baskets Display: LED Display
Data Recording: No Printer Material: Stainless Steel 304
Machine Size: 580*560*1060mm Net Weight: 76kg
Max Working Temp.: 138℃ Working Press.: 0.25Mpa
Highlight:

100L Vertical High Pressure Autoclave

,

Safe Vertical High Pressure Autoclave

,

Safe Laboratory Steam Sterilizer

100L Reliable Sterilization Touch Buttons Safety Vertical High Pressure Autoclave

This Bolt Door Structure Vertical High Pressure Autoclave are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Main Parameter:

MODEL

STV-LB35

STV-LB50

STV-LB75

STV-LB100

STV-LD120

STV-LD150

Chamber volume

35L

φ318×450mm

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

120Lφ

480×660mm

150L

φ510×740mm

Design pressure

0.3MPa

Design temperature

150℃

Max. working pressure

0.25MPa

Max. working temperature

138℃

Heat average

≤±1℃

Timer range

0~99min or 0~99hour59min

Power

1×2.5KW/AC220V.50Hz

2×1.5KW/AC220V.50Hz

3×1.5KW/AC220V.50Hz

3×1.5KW/AC220V.50Hz

3×2.0KW/AC220V.50Hz

3×2.0KW/AC220V.50Hz

Overall dimension(mm)

470×450×840

520×500×970

550×530×990

580×560×1060

630×610×1130

660×640×1130

Transport dimension(mm)

540×540×1000

580×580×1130

610×610×1160

640×640×1220

690×690×1290

730×730×1290

G.W/N.W

64kg / 47kg

77kg / 56kg

90kg / 70kg

98kg / 76kg

125kg / 103kg

138kg / 111kg

Product Details

100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization 0

Product Features:

  1. Fully Stainless Steel Structure
    Durable and corrosion-resistant build ensures long service life and easy maintenance.

  2. LED Display with Touch-Key Control
    Clear digital interface for real-time monitoring and easy operation.

  3. Automatic Cool Air and Steam Discharge
    Enhances user convenience by auto-releasing residual air and steam after each cycle.

  4. Auto Shut-Off with Buzzer Reminder
    Alerts the user when sterilization is complete and powers off automatically for safety.

  5. User-Friendly Operation
    Simple, safe, and reliable—designed for ease of use in medical and laboratory environments.

  6. Equipped with Two Stainless Steel Sterilizing Baskets
    Allows efficient loading and organized sterilization of instruments.

Application:
Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization 1

Our Factory

100L Safe Vertical High Pressure Autoclave Touch Buttons For Sterilization 2

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support do you offer? Is global support available?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the products?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
