Laboratory Double-layer Vertical Shaking Platform Design Vertical Incubator Shaker

Laboratory Double-layer Vertical Shaking Platform Design Vertical Incubator Shaker
Laboratory Double-layer Vertical Shaking Platform Design Vertical Incubator Shaker Laboratory Double-layer Vertical Shaking Platform Design Vertical Incubator Shaker

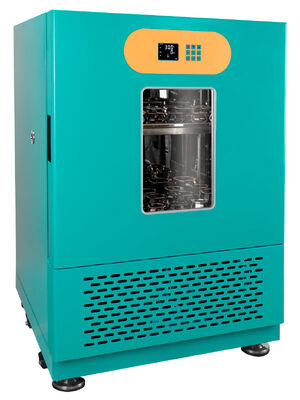

Large Image :  Laboratory Double-layer Vertical Shaking Platform Design Vertical Incubator Shaker

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: ST-LY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500USD-15000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

Laboratory Double-layer Vertical Shaking Platform Design Vertical Incubator Shaker

Description
Volume: 180L,280L,600L Temperature Adjustment: 4~60℃
Temperature Uniformity: ±1℃(Measured At 25℃) Temperature Resolution: 0.1℃
Temperature Control Accuracy: ±0.1℃ Trays Number: 2PCS
Timer: 1-9999min Optional: USB Storage Interface
Chamber Material: Stainless Steel 304 Power Supply: AC220V/50Hz
Highlight:

double-layer vertical shaking platform

,

vertical incubator shaker

,

laboratory shaking platform with warranty

Laboratory Double-layer Vertical Shaking Platform Design Vertical Incubator Shaker

The Vertical Incubator Shaker is a laboratory device that significantly enhances space utilization through its double-layer vertical shaking platform design.

Orbital Shaker Incubator Parameter:

Parameter

ST-LY180

ST-LY280

ST-LY600

Rotation Frequency

30-300rpm

Frequency Accuracy

±1rpm

Orbital Diameter

Φ26mm

Standard Configuration (with flask clamps)​

250mlx40pcs

250mlx70pcs

250mlx120pcs

Number of Trays

2pcs

Tray Size

50x35cm

74x46

97x76

Power

950W

1100W

1500W

Temperature Control Range

4-60℃

Temperature Control Accuracy

±0.1℃

Temperature Uniformity

±1(measured at 25℃)

Temperature Resolution

0.1℃

Timer Range

1-9999min

Power Supply

AC220V 50HZ

Internal Dimensions (W x D x H)

64x46x65cm

84x52x65cm

110x64x85cm

External Dimensions (W x D x H)

76x70x120cm

95x78x120cm

122x84x120cm

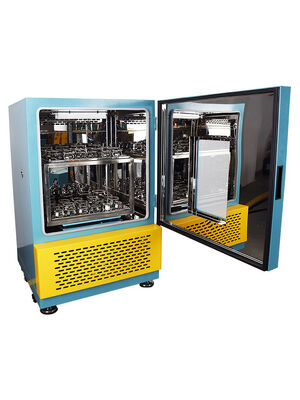

Thermo Shaker Details

Laboratory Double-layer Vertical Shaking Platform Design Vertical Incubator Shaker 0

Bacterial Shaker Incubator Features

  1. Outer Casing
    Combines constant-temperature incubation and orbital shaking in one compact unit, saving valuable lab space. The cabinet is constructed from high-quality cold-rolled steel, finished with an electrostatic powder coating to form a dense, hard, and durable protective layer with superior corrosion resistance. A standard 25 mm test port is located on the left side.
  2. Working Chamber
    The interior is crafted from mirror-polished SUS304 stainless steel for easy cleaning and durability. Features quickly detachable shelf brackets for effortless adjustment and removal. Includes an interior LED light and a UV sterilization function.
  3. Observation Window
    A double-pane tempered glass window provides a clear view of samples while ensuring excellent thermal insulation.
  4. Control Panel
    Features a precise microprocessor-based digital temperature controller. It offers high accuracy, eliminates temperature overshoot, and displays multiple parameters on one screen. Includes temperature calibration and programmable timer functions.
  5. Motor
    Utilizes a low-heat, brushless DC motor for exceptionally smooth and stable operation. Provides high starting torque, a wide speed range, and is maintenance-free.
  6. Fluorine-Free Refrigeration
    Equipped with a premium domestic compressor using environmentally friendly fluorine-free refrigerant, delivering powerful cooling performance with low operating noise.
  7. Safety System
    Comprehensive protection includes leakage (ground-fault) protection, automatic recovery from power failures, and an over-temperature alarm with automatic shutdown.
  8. Optional Accessories
    Upgrade with an optional dot matrix printer or USB data interface for recording and exporting run parameters.
  9. Clamps (Choose One Type)
    Select from three clamping options to suit your labware: universal spring clamps, adhesive pad plates, or Erlenmeyer flask clamps.



Application of the shaker incubator for cell culture

Ideal for diverse laboratory workflows requiring precise temperature control and orbital shaking, including:

  • Microbial Culture: Bacterial fermentation, yeast studies, and vaccine development.

  • Cell Research: Stem cell expansion, mammalian cell culture, and drug screening assays.

  • Biochemical Reactions: Enzyme kinetics studies, DNA hybridization, and protein expression.

Sectors Served
Designed to meet the high-precision demands of key industries:
Pharmaceutical & Biotechnology, Food Science & Safety, Environmental Monitoring, and Academic & Research Institutions.

This unit delivers the stable, controlled environment essential for reliable cultivation and mixing, ensuring reproducible results across your critical applications.
