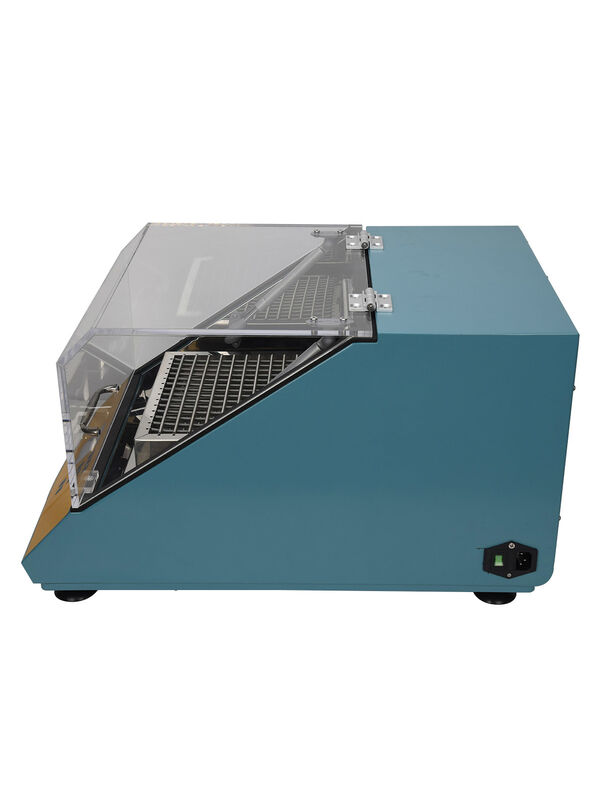

TY Series LCD Microcomputor Control Bench-Top Incubator Shaker

TY Series LCD Microcomputor Control Bench-Top Incubator Shaker
TY Series LCD Microcomputor Control Bench-Top Incubator Shaker TY Series LCD Microcomputor Control Bench-Top Incubator Shaker

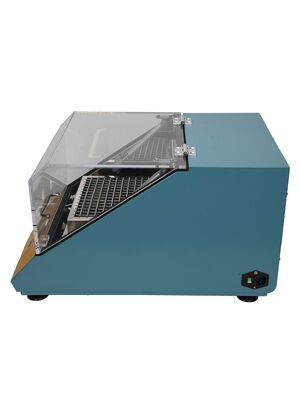

Large Image :  TY Series LCD Microcomputor Control Bench-Top Incubator Shaker

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: ST-TY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500USD-15000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

TY Series LCD Microcomputor Control Bench-Top Incubator Shaker

Description
Volume: 22L,50L,80L Temperature Adjustment: RT+5～60℃ Or 4～60℃
Temperature Uniformity: ±1℃(Measured At 37℃) Temperature Control Accuracy: ±0.1℃
Rotation Frequency: 20-300rpm Trays Number: 1PCS
Timer: 1-9999min Orbital Diameter: 26mm
Chamber Material: Stainless Steel 304 Power Supply: AC220V/50Hz

TY Series LCD Microcomputor Control Bench-Top Incubator Shaker

The TY Series Bench-Top Incubator Shaker is an intelligent device that combines constant temperature incubation with orbital shaking. Utilizing microprocessor-based control, it ensures precise temperature and rotation management to support growth, metabolism, and cultivation processes.

Benchtop Orbital Shaking Incubator Parameter:

Parameter

ST-TY22

ST-TY22R(Refrigerated)

ST-TY50

ST-TY50R(Refrigerated)

ST-TY80

ST-TY80Y(Refrigerated)

Rotation Frequency

20-300rpm

Frequency Accuracy

±1rpm

Orbital Diameter

Φ26mm

Timer Range

1-9999min

Temperature Control Range

Non-refrigerated: RT+5~60°C; Refrigerated: 4~60°C

Temperature Control Accuracy

±0.1℃

Temperature Uniformity

±1℃(measured at 37℃)

Number of Trays

1

Universal Spring Clamp Size

24x26cm

40x38cm

44x42cm

Max Capacity (with flask clamps)

50mlx12 or 100mlx9 or 250mlx4

50mlx20 or 100mlx16 or 250mlx12 or500mlx9 or1000mlx4

100mlx20 or 250mlx16 or 500mlx9 or 1000mlx5 or 2000mlx4

Power

Non-refrigerated: 400 W

Refrigerated: 500 W

Non-refrigerated:550W
Refrigerated:650W

Non-refrigerated:700W
Refrigerated:800W

Internal Dimensions (W x D x H)

35x30x23cm

44x41x28cm

48x45x32cm

External Dimensions (W x D x H)

39x61x36cm

52x87x60cm

56x85x57cm

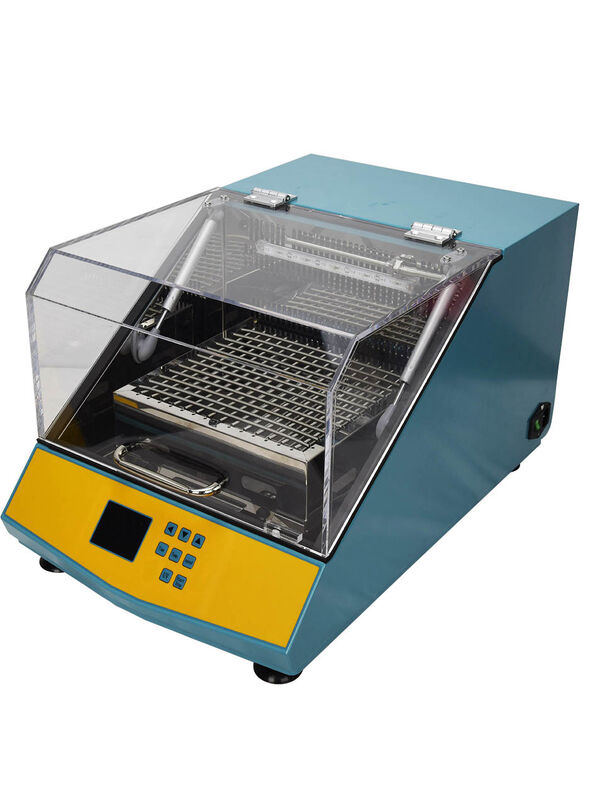

Refrigerated Incubator Shaker Details

TY Series LCD Microcomputor Control Bench-Top Incubator Shaker 0

Benchtop Incubator Shaker Features

1. Robust Construction & Hygiene

  • Durable Outer Casing: Built from premium cold-rolled steel with an electrostatic powder-coated finish, providing a hard, dense, and corrosion-resistant protective layer for long-term reliability.

  • Easy-Clean Interior: The working chamber is constructed from seamless, mirror-polished SUS304 stainless steel, ensuring a sterile environment that is effortless to clean and decontaminate.

  • Integrated Sterilization: A built-in UV lamp allows for convenient periodic chamber disinfection, minimizing the risk of cross-contamination between experiments.

2. Intuitive Control & Monitoring

  • User-Friendly Interface: Features a large LCD screen and microprocessor control for straightforward operation, offering continuous, real-time display of key parameters including temperature, speed, and time.

  • Precise Temperature Control: A high-stability constant temperature system, combined with highly sensitive sensors, ensures uniform and accurate thermal conditions essential for sensitive applications.

3. Enhanced Safety & Reliability

  • Operational Safety: Equipped with a door-open stop protection device that automatically pauses shaking when the door is opened, resuming only when safely closed.

  • Uninterrupted Workflows:

    • Parameter Memory: Automatically recalls the previous run settings upon startup, saving time and reducing setup errors.

    • Power Recovery: In the event of a power interruption, the unit can be set to automatically resume operation according to the original program once power is restored.

  • Dependable Drive System: Utilizes a maintenance-free DC brushless motor engineered for safe, quiet, and reliable long-term continuous operation.

4. Convenient Design Features

  • Clear Observation: A large, high-transparency viewing window (often fitted with a stay-open gas strut for hands-free access) allows for easy monitoring of samples without disturbing the chamber environment.

  • Flexible Sample Holding: Choose from three clamp options to suit your labware: Universal Spring Clamps, Adhesive Pad Plates, or dedicated Erlenmeyer Flask Clamps (one type included as standard).



Application of the benchtop shaker

  • Microbial Culture: Ideal for bacteria and yeast fermentation, vaccine development, and general microbial growth studies.
    Cell Culture & Research: Supports mammalian cell cultivation, stem cell expansion, and protein expression workflows.
  • Molecular Biology: Effective for DNA hybridization, enzymatic reactions, nucleic acid extraction, and other sensitive biochemical assays.
  • Pharmaceutical R&D: Enables drug screening, solubility studies, and stability testing under controlled shaking and temperature conditions.
  • Quality Control & Testing: Used in environmental monitoring (e.g., water quality analysis) and food science (e.g., shelf-life testing, spoilage studies).

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.


FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 7-15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support do you offer? Is global support available?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the Shaker Incubator?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
