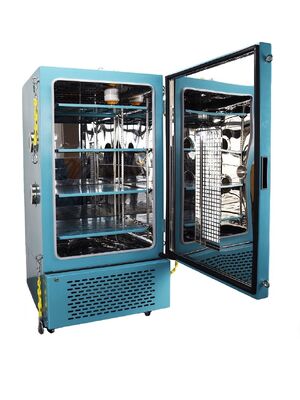

Explosion-Proof Battery Safety Test  Enclosure Fire and Pressure Containment

The Battery Safety Enclosure is a specialized protective device designed for battery safety testing. Its primary purpose is to effectively isolate and control potential hazards such as combustion and explosion during battery tests, including overcharge, over-discharge, forced discharge, and other safety performance assessments.

Battery Safety Test Chamber Parameter:

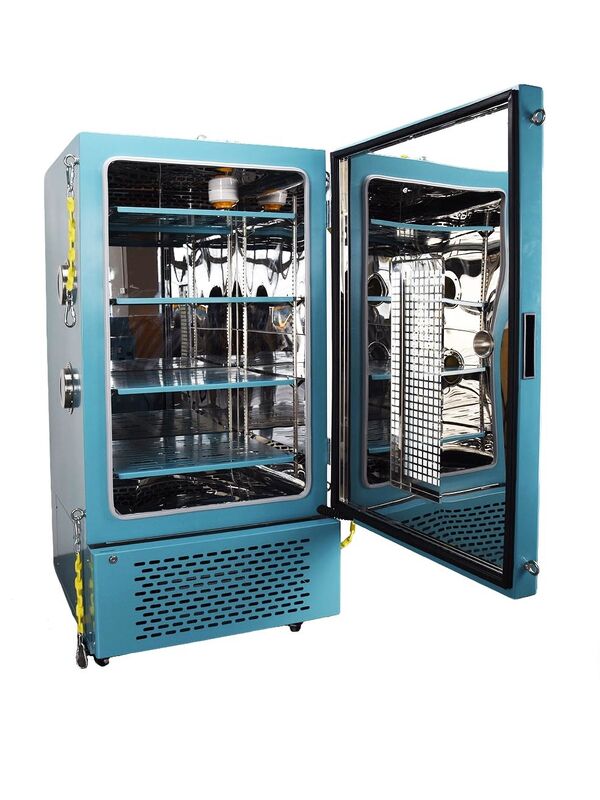

Battery Safety Enclosure Details

Battery Explosion Proof Chamber Features

1. Outer Casing: The casing is constructed from selected thickened cold-rolled steel plate, treated with electrostatic baking paint, forming a dense protective layer that is hard, robust, and offers excellent rust resistance. Standard equipment includes 2 cable access ports (50mm each) on the left side.

2. Protective Door: The door is reinforced with heavy-duty hinges and is equipped with an explosion-proof chain.

3. Pressure Relief Device: A dedicated pressure relief vent is located on the top of the cabinet.

4. Working Chamber: The inner chamber is made of SUS304 stainless steel with a mirror polish finish.

5. Shelf: Features insulated spacer plates designed specifically for clamping batteries, manufactured using special processes for ease of use.

6. Explosion-Resistant Observation: A double-layer insulated tempered glass observation window, reinforced with a wire mesh grid to protect against impact from explosions.

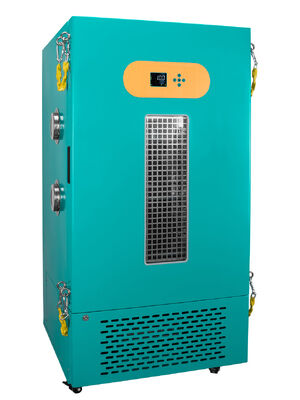

7. Control Panel: Utilizes a microcomputer-controlled intelligent LCD temperature controller, offering high precision, no overshoot, and multi-data display on a single screen. It includes temperature calibration and timer functions.

8. Temperature Control: Features automatic cooling and heating control, equipped with highly sensitive sensors to ensure stability during continuous operation.

9. Air Duct: A dual-channel forced convection ventilation structure improves temperature response speed and enhances temperature uniformity.

10. Alarm System: If smoke or fire is detected inside the chamber during testing, the system triggers an audible and visual alarm and automatically cuts off power.

11. Safety System: Includes leakage protection, auxiliary temperature control, and an RS485 communication interface.

Application of Battery Fire Test Chamber

Why Choose Us?

1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

1. Q: What are your payment terms?
   A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
2. Q: What is the delivery time?
   A: About 7-15 working days for one unit.
3. Q: What certifications does the sterilizer have?
   A: CE, ISO 13485, ISO 9001.
4.  Q: What warranty and after-sales support do you offer? Is global support available?
   A: 12-month warranty from installation. We offer:
   ① Remote technical support via phone, email, and video.
   ② Operation & maintenance training (manuals, online/on-site).
   ③ Ample spare parts stock.
   24/7 technical response guaranteed.
5. Q: How do you ship the Battery Abuse Test Chamber?
   A: Ship by Sea or Air
   ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
   ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
6. Q: What trade terms do you support?
   A: EXW, FOB, CFR, CIF, and DDP.
7. Q: Are you a factory or a trading company?
   A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
