Capacity: | 35L, 50L | Door Structure: | Handle Door |
---|---|---|---|
Number Of Baskets: | 4 Pcs Sterilizing Plates | Display: | Led Display |
Data Recording: | Without Printer | Chamber Material: | Stainless Steel 304 |
Drying Function: | 40% Natural Drying | Water Tank: | Build-in |
Max Working Temp.: | 138℃ | Working Press.: | 0.25Mpa |
Highlight: | 50 Liters Bench Top Steam Sterilizer,Front Lading Bench Top Steam Sterilizer,50 Liters Tabletop Autoclave Sterilizer |

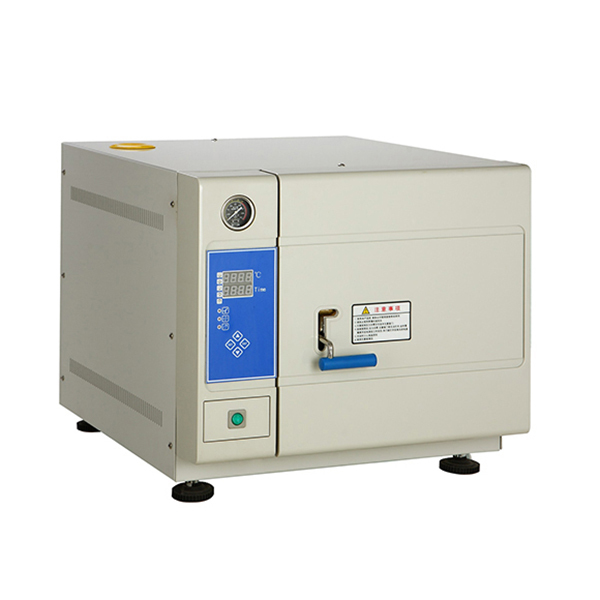

HN series Class N Tabletop Autoclave is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is ideal equipment for unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric, etc.
Technical Data |
STT-HN35 |
STT-HN50 |
Sterilizing chamber volume |
35L Ø300 x 500mm |
50L Ø340 x 550mm |
Design pressure |
0.3MPa |
0.3MPa |
Design working temperature |
150°C |
150°C |
Maximum working pressure |
0.25MPa |
0.25MPa |
Maximum working temperature |
138°C |
138°C |
Temperature adjust range ; |
105-134°C |
105-134°C |
Timer range |
0~99min |
0~99min |
Heat average |
≤±1°C |
≤±1°C |
Power |
2.7KW/AC220V.60Hz, Single phase |
|
Sterilizing plate(mm) |
400 x 200 x 30(4piece) |
500 x 250 x 30(4piece) |
Dimension(mm) |
730x550x510 |
770 x 600 x 540 |
Exterior package dimension(mm): |
780 x 670 x 650 |
840x710x690 |
G.W/N.W |
92kg/ 78kg |
105kg/89kg |
Fast Sterilization: Rapid 4–6 minute sterilizing cycle.
User Interface: Digital display with touch-sensitive keys for easy operation.
Preset & Adjustable Programs: Three fixed sterilization programs with customizable settings to suit various needs.
Fully Automatic Operation: Water filling, heating, sterilizing, drying, and steam discharging are all automatically controlled.
Steam-Water Inner Circulation System: No steam discharge into the environment, keeping the workspace clean and dry.
Water Shortage Protection: Automatically detects and alerts for insufficient water levels.
Automatic Cool Air Exhaust: Ensures safe and efficient sterilization results.
Safety Door Lock System: Prevents opening when pressure is high or during operation.
Stainless Steel Construction: Chamber made of durable stainless steel for long-lasting use.

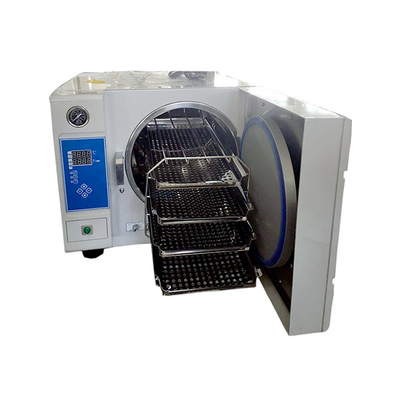

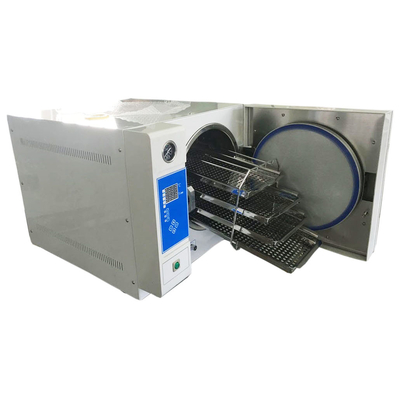

Four Sterilizing Trays: Includes four stainless steel trays for flexible loading.
Auto Shut-Off with Beep Reminder: Alerts user upon cycle completion.
Drying Function Included: Enhances sterilization results for dressings and instruments.
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
Other Autoclaves
In addition to this N Class compact desktop autoclave, we provide an extensive lineup of high-efficiency and space-conscious steam sterilization units, including Class B benchtop sterilizers, vertical gravity discharge autoclaves, internal circulation steam sterilizers, fully automatic vacuum-operated vertical units, horizontal energy-efficient autoclaves, pre-vacuum horizontal sterilization chambers, and portable compact steam sterilizers. Engineered for clinics with space limitations, mobile medical setups, pharmaceutical R&D centers, and scientific labs, our equipment delivers reliable sterilization performance with core values of safety, energy-saving design, and long-term durability.
