Capacity: | 63l, 110l, 128l, 160l, 180l, 200l, 300l, 400l, 600l | H2O2 Solution: | Cassette Type |
---|---|---|---|
Door Numbers: | Single Door Or Double Door | Door Structure: | Automatic Lifting Door |
Number Of Plates: | 2 Layers Sterilizing Plates | Display: | LCD Touch Screen |
Material: | 304 Anti-corrosion Type Stainless Steel Or Aluminum 5052 | Data Recording: | Printer Equipped |
Control System: | Use Imported Siemens Smart Series PLC Control System | Sterilizing Temperature: | 50℃±5℃ |
Highlight: | Auto Door Low Temperature Plasma Sterilizer,Data Storage Low Temperature Plasma Sterilizer,Auto Door Hydrogen Peroxide Sterilizer |

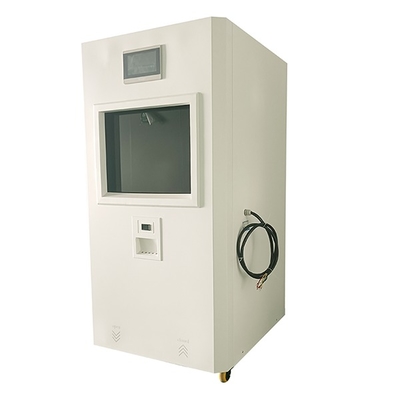

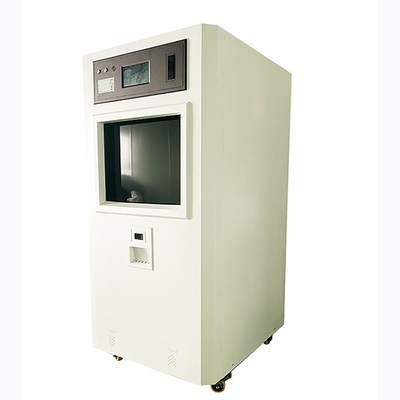

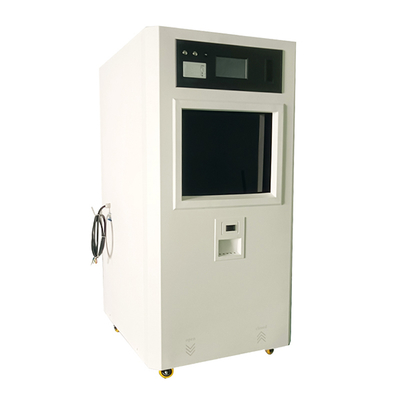

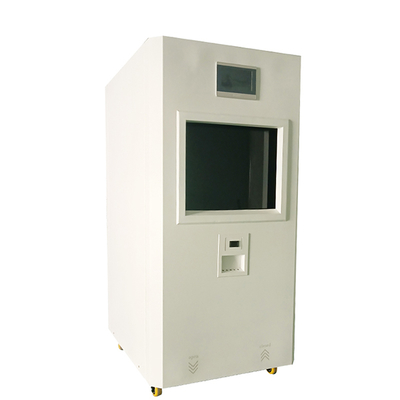

Cassette Hydrogen Peroxide Sterilizer system is hydrogen peroxide (H₂O₂), in low temperature environment through the electromagnetic field of hydrogen peroxide (H₂O₂) to form hydrogen peroxide (H₂O₂) plasma, combined with hydrogen peroxide (H₂O₂) gas and hydrogen peroxide (H₂O₂) plasma for indoor items at low temperature, dry sterilization, and can effectively dissociate residual hydrogen peroxide (H₂O₂).
In operating rooms, the STL‑PW model delivers virtually immediate access to sterile tools. It’s easy to install and operate, requiring only single-phase power and hydrogen peroxide cassettes for a cassette plasma sterilizer system. This eliminates the need to send instruments to a central CSSD, thereby reducing the risk of damage or contamination during transport.
Product Model |
Power Supply |
Power |
Inner Tank Capacity |
Inner Tank Dimensions (Length×Width×Height, cm) |
Outer Carton Dimensions (Length×Width×Height, cm) |
STL-PW60 |
AC220V 50Hz |
2.2kVA |
63L |
65*38*32 |
82*69*154 |
STL-PW110 |
AC380V 50Hz |
2.8kVA |
110L |
65*48*38 |
89*80*159 |
STL-PW120 |
AC380V 50Hz |
3.2kVA |
128L |
70*48*38 |
89*80*159 |
STL-PW160 |
AC380V 50Hz |
4.0kVA |
160L |
76*46*46 |
9578170 |
STL-PW180 |
AC380V 50Hz |
4.2kVA |
180L |
85*46*46 |
104*78*170 |
STL-PW200 |
AC380V 50Hz |
4.6kVA |
200L |
95*46*46 |
114*78*170 |
STL-PW300 |
AC380V 50Hz |
4.8kVA |
300L |
95*56*56 |
114*88*187 |
STL-PW400 |
AC380V 50Hz |
5.0kVA |
400L |
100*66*60 |
135*100*180 |
STL-PW600 |
AC380V 50Hz |
5.0kVA |
600L |
120*66*75 |
154*100*190 |
Chamber Material: Rectangular structure made of 304 stainless steel (thickness: 3mm) for enhanced durability and space utilization.
Glow Electrode Grid: Made of 5052 aluminum alloy (thickness: 3mm).
Sterilization Chamber Heating: Hexahedral PTC silicone plate with independent temperature control ensures uniform heat and dual-temperature protection.
Door Structure: Vertical automatic lifting door with anti-clamp safety system and foot-sensing open/close function.
Door Safety Lock: Auto-lock system prevents opening during sterilization to ensure safety.
Sterilant Type: Cassette-based 58% hydrogen peroxide; each cassette contains 12 x 5ml capsules.
Sterilization Method: H₂O₂ plasma technology with in-line purification, reaching over 93% purity. No toxic residues.
Sterilization Temperature: 50℃ ± 5℃
Sterilization Cycles:
Fast cycle: 25 minutes
Standard cycle: 35 minutes
Enhanced cycle: 55 minutes
Controller: Siemens PLC with advanced program logic and safety.
Touchscreen: 7-inch high-resolution color display with real-time cycle visualization.
Display Functions: Pressure, temperature, time, process stage, cycle mode, and alarms.
Printer: Micro printer for cycle reports including parameters, graphs, start/end times.
Memory Storage: Stores over 8000 sterilization records, power-off memory retention.
USB Port: Supports export and backup of sterilization records.
Pressure Sensor: High-accuracy transmitter for stable pressure control.
Temperature Sensor: Dachang brand, small error, stable readings.
Filter System: Ultrafine aseptic filter with filtration precision ≤ 0.22μm.
Plasma Generator: RF glow discharge, 19kHz frequency, max power 500W.
Plasma Generation Mode: Single AC discharge mode ensuring 100% success rate.
Vacuum Pump: High-vacuum rotary vane pump with H₂O₂ resistance; 16 m³/h capacity; <65dB operation sound.
Vacuum Protection: Phase sequence protection prevents motor reversal.
Oil Mist Filter: Captures and recycles mist to reduce emissions and oil consumption.
Alarming System: Real-time monitoring with automatic error display and Chinese alert interface.
Sterilant Safety: Plasma process breaks H₂O₂ into water and oxygen, leaving no residue.
Operator Protection: UV light from plasma is fully shielded and invisible to the user.
Environmental Impact: Non-toxic, safe for environment and personnel.
Sterilization Validation: Validated for 2m Teflon lumen (1mm ID) and 500mm stainless steel lumen (1mm ID) per provincial sterility test report.
Biological Incubator: 56℃ ± 3℃, 48-hour cycle for biological monitoring.
The STL‑PW offers an efficient sterilization solution for heat- and moisture-sensitive equipment in CSSDs as well as gastroenterology and respiratory endoscopy clinics.
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
