Capacity: | 60L | Door Structure: | Automatic Lifting Door |
---|---|---|---|
Number Of Plates: | 2 Layers Sterilizing Plates | Display: | LCD Touch Screen |
Data Recording: | Printer Equipped | Control System: | Use Imported Siemens Smart Series PLC Control System |
Chamber Size: | 750*630*1510mm | Net Weight: | 174kg |
Power: | 2.6kw | Sterilizing Temperature: | 50℃±5℃ |
Highlight: | Handle Door Low Temperature Plasma Sterilizer,Hospital Use Low Temperature Plasma Sterilizer,60L Hydrogen Peroxide Plasma Sterilization |

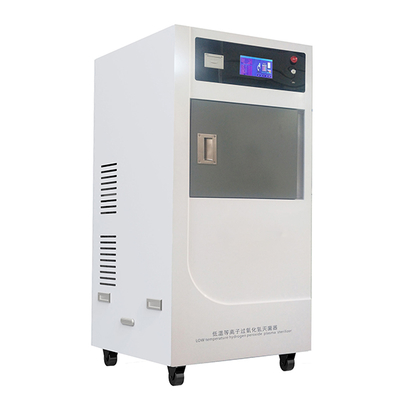

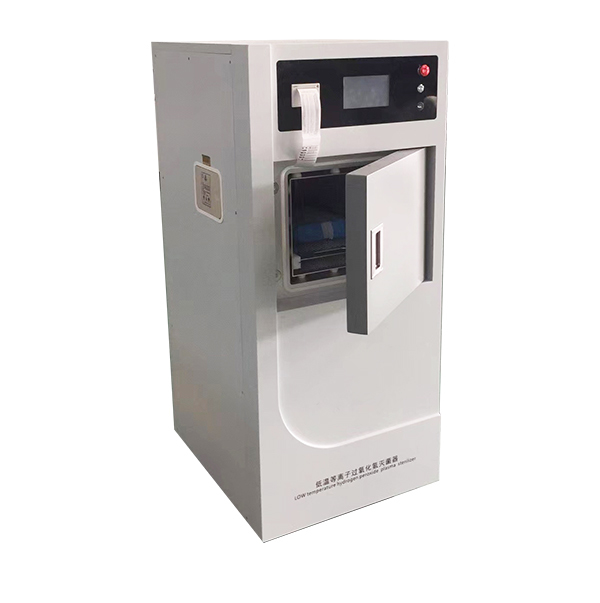

Ideal for sterilizing heat-sensitive surgical instruments and endoscopes in hospitals, this low-temperature plasma system (50°C) completes validated cycles in 30 minutes. Ensure compliance and instrument longevity in medical/dental facilities with fully automated H₂O₂ plasma sterilization, featuring traceable data logging for audit-ready safety protocols.
Product Model |
STL-P60 |
Capacity |
60L |
Inner size |
61x35x32cm |
Machine size |
75x63x151cm |
Power supply |
220V 50Hz |
Power |
2.6kw |
Net weight |
174 kg |
Gross weight |
220 kg |
Packing size |
90*80*165 cm |
Product Type |
Manual door vertical |
Heating method |
Electric heating |
Chamber material |
Aluminum 5052, thickness ≥ 8mm |
Display |
7’ LCD touch screen |
Temperature sterilization |
50℃±5℃ |
Work pressure |
50Pa |
H2O2 concentration |
60% |
Air replacement |
Sterile filter automatic ventilation |
Sterilization time |
Short cycle 35 minutes , long cycle 50 minutes |
1.Modes
enhanced mode and fast mode. Enhanced mode ≤ 50 minutes, fast mode ≤ 35 minutes.
2. Safe and environment friendly
The mater after sterilization is water and oxygen molecule that have no toxic harm to staff or patient ,and there is no need for drainage or air exhausting .
3. Convenient
Only power supply is needed for installation.
4. Key components
Siemens S series PLC control unit. The vacuum pump , pressure transmitter and other key components are world famous brand .
5. Touch panel
Human-machine interface display :temperature, pressure, time, cycle mode, process phase and alarm information etc.
6. Reliable sterilization
The chamber adopts alloy material which have good thermal conductivity to guarantee a stable temperature in the chamber . makes the H2O2 diffuses uniformly.
7. Data management
Machine can memory 400 cycles original data for inquiry and download . Mini printer real-time data recording .
8. Alarm system
over-voltage and over-temperature protection function, alarms display on the touch screen, which leads the after-sales person handles the fault point faster and better .
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
Related sterilizers
We supply a full spectrum of low-temperature sterilization equipment, including both cassette-type plasma sterilizers for quick turnaround cycles and capsule-type plasma sterilizers designed to safely sterilize heat- and moisture-sensitive medical instruments.
Our steam sterilizer offerings include:
Large rectangular chamber steam sterilizers built for hospital sterilization departments and operating theaters,
Horizontal cylindrical vacuum autoclaves with pulsating vacuum phases for effective steam penetration,
Vertical gravity steam autoclaves for routine sterilization in clinics and labs,
Vertical vacuum-assisted sterilizers featuring automatic drying and programmable control,
Benchtop gravity steam sterilizers optimized for compact medical workspaces,
Tabletop Class B autoclaves engineered to meet global standards for sterilizing hollow, wrapped, or porous instruments,
And portable steam sterilizers, lightweight and easy to use in mobile or temporary medical environments.
Additionally, we offer ethylene oxide (EtO) gas sterilization systems, available in small-format EO units for dental or outpatient clinics, as well as large-capacity EO chambers for hospital or industrial-level instrument sterilization.
