Capacity: | 120L | Chamber Size: | Ø450×760mm |
---|---|---|---|
Door Structure: | Bolt Lock Door | Basket: | 2 Pcs Buckets |
Display: | Digital Display | Packing Size: | 690×650×1330mm |
Material: | Stainless Steel | Autoclave Weight: | 82kg |
Max Working Temp.: | 134℃ | Working Press.: | 0.22Mpa |
Highlight: | 120L Non Vacuum Autoclave,Bolt Lock Door Non Vacuum Autoclave,Digital Display pulse vacuum steam sterilizer |

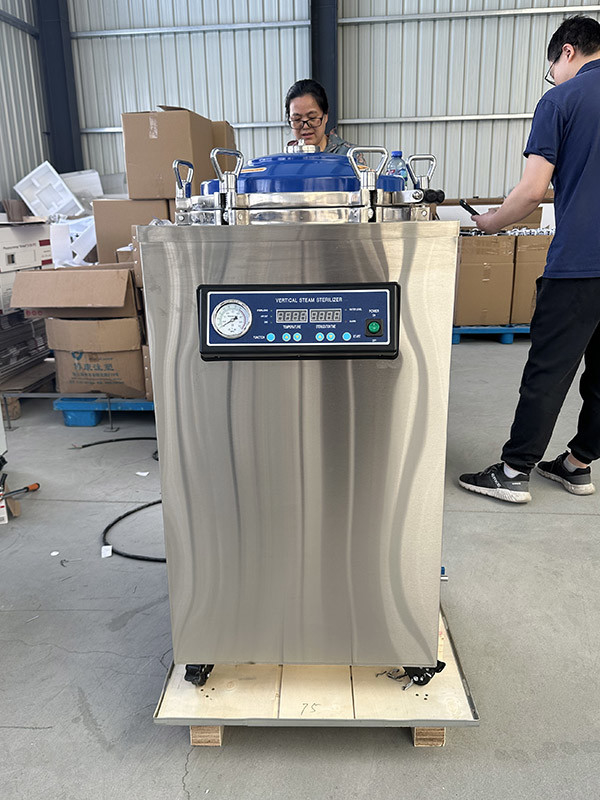

This compact design vertical steam sterilizer are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Model | STV-LD120 |
Volume | 120L |
Power | 4.5kW |
Voltage | AC 220V,50HZ |
Rated working pressure | 0.22Mpa |
Rated working temperature | 134℃ |
Sterilization temperature | 50℃~134℃ |
Sterilization time setting range | 4~120 min |
Drying time setting range | 0~240min |
Chamber volume | Ø450×760 |
Bucket dimension | Ø420×660 |
Basket dimension(optional) | Ø410×350×2 |
Outer dimension | 555×599×1200 |
Packing size (L× W× H )mm | 690×650×1330 |
Gross/net weight | 108/82KG |
Durable Stainless Steel Steam Sterilizer Structure & Build

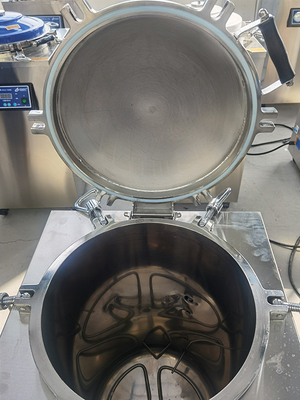

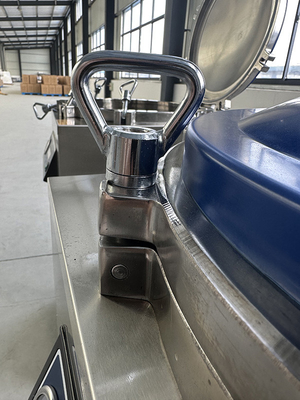

Bolt-locking structure for reliable sealing
High-quality stainless steel construction
Self-expanding sealing system
Includes stainless steel bucket or basket
Manual Exhaust Top Loading Autoclave Control System
Microcomputer automatic control with freely adjustable sterilization parameters
Digital display with touch button interface
Standard test interface
Top Loading Vertical Autoclave For Hospitals Safety & Protection
Safety interlocking device
Integrated automatic protection functions:
• Over-temperature protection
• Over-pressure protection with self-discharge
• Low water level protection
• Anti dry-burning
Sterilization Performance
Automatic cooling air discharge
Automatic steam exhaust at the end of sterilization
Buzzer reminder and automatic stop after cycle completion
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
