Capacity: | 12L | Packing Size: | 580*790*580mm |
---|---|---|---|
Gross Weight: | 48kg | Sterilization Trays: | 3 Sterilizing Plates |
Display: | LCD Display | Chamber Material: | Stainless Steel 304 |
Drying Function: | Vacuum Drying | Water Tank: | Build-In |
Max Working Temp.: | 138℃ | Working Press.: | 0.25Mpa |
Highlight: | 12L Class B Dental Autoclave,Class B Dental Autoclave,LCD Display Type B Sterilizer |

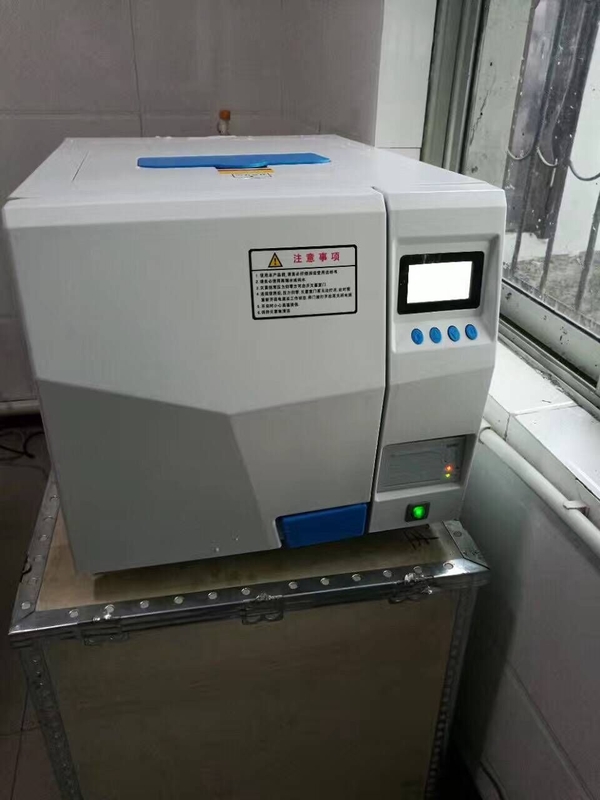

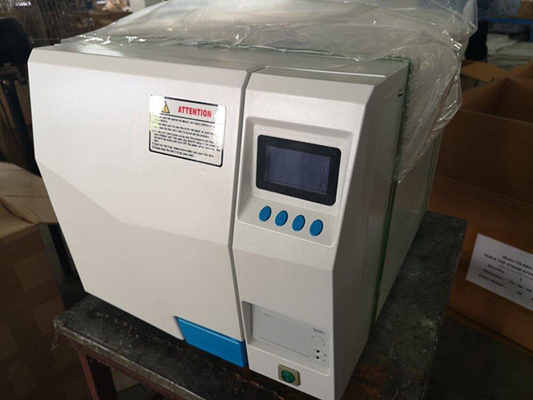

This Class B Dental Autoclave with Pre Vacuum is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is ideal equipment for unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.
MODEL |
STT-HB12 |
Sterilizing chamber volume |
12L (φ200×370) |
Design pressure |
0.3Mpa |
Design temperature |
150℃ |
Max. Working pressure |
0.25Mpa |
Max. Working temperature |
138℃ |
Timer Range |
0-99 min |
Heat average |
≤ ± 1℃ |
Power |
1.8KW |
Dimension(mm) |
480x600x400 |
Package dimension(mm) |
580x790x580 |
G.W/N.W |
48kg/43kg |
1. Standard Class B with three times vacuum, vacuum drying.
2. LCD display working status, operating temperature, pressure and time, pulsating vacuum, drying, water level and system errors.
3. The vacuum data can reach -0.8 bar, it fits various instrument, including package, unpackaged, solid, hollow, multi-apertures and inset pipes.
4. Cycle progresses automatically by control system through conditioning, sterilizing, exhaust, drying and venting phases.
5. With 7 sterilization program cycles: Fluid, Instrument, Textile, Rubber, Customize, Vacuum test, B & D test.
6. The timer starts only after the pre-set temperature is reached, ensuring complete sterilization.
7. Automatic air venting device (vacuum pump) discharges cool air from chamber to obtain effective saturated steam.
8. Fast and independent steam generator to provide strict control of heating temperature.
9. Built-in mini printer, water tank, high efficiency filter.
10. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
11. Can inactivate HIV, HBV, mad cow virus and bacillus.

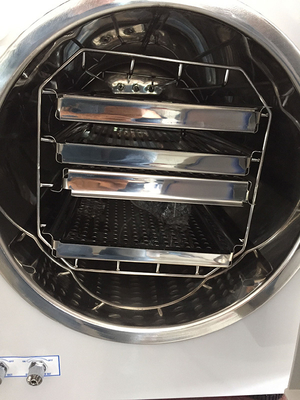

12. The Cylindrical chamber is made of high quality SUS 304 stainless steel with polished surface for long lasting service and easy cleaning.
13. This machine is designed for open water tank, water purification, sewage tank separation, convenient and intutive.
14. Sound-light alarm when sterilization finished and cuts off the heating power source. Power shuts off upon completion of the cycle.
2. Anti-dry heating
3. Safety interlock door: The program can’t start up when the door is unlocked under normal condition. Door is locked and the door can’t open when pressure in chamber.
4. Over-temperature protection: Adapt PT100 with accuracy class A for temperature control in chamber, collect temperature data in real-time, protect and alarm when temperature higher than default value.
5. Over-pressure protection: The relief valve starts to release pressure automatically when the pressure in chamber and steam generator exceed the default value.
6. Automatic release safety valve
7. Over current protect
8. Electric safety protective device: Fuse protects control units when short circuit or overload occurs.
9. Overheating protection device: High temperature deviation in chamber actuates protective device cuts off the heating source immediately.
10. Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked when vacuum pump running.
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
Other Autoclaves
Besides this Class B small footprint tabletop steam autoclave, we also deliver a broad range of advanced and eco-friendly sterilization equipment, including Class N bench autoclaves, vertical gravity steam sterilizers, internal circulation vertical steam autoclaves, automatic vacuum-operated vertical sterilizers, horizontal low-energy consumption autoclaves, pre-vacuum horizontal chamber units, and compact portable steam autoclaves. Engineered for outpatient clinics, mobile medical units, pharmaceutical analysis labs, and academic research centers, our autoclave solutions prioritize smart digital control systems, comprehensive safety mechanisms, and high-efficiency sterilization performance.
