Automatic Door Low Temp Sterilization System 200L High Capacity For Lab Use

Name: Automatic Door Low Temp Sterilization System 200L High Capacity For Lab Use
Brand: Stertek（Nanjing）Medical Equipment Co.,ltd
SKU: STL-PW200
Price: 12,823.00 USD
Availability: InStock

All Products

Horizontal Autoclave Sterilizer
(48)

Vertical Autoclave Machine
(52)

Table Top Autoclave
(36)

Portable Autoclave Machine
(4)

Low Temperature Plasma Sterilizer
(14)

Ethylene Oxide Sterilizer
(4)

Pharmaceutical Sterilizer
(4)

Automatic Washer Disinfector
(7)

Ultrasonic Cleaning Machine
(4)

Water Treatment Equipment
(4)

Drying Cabinet
(4)

CSSD Equipment
(3)

Customer Reviews

We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

Automatic Door Low Temp Sterilization System 200L High Capacity For Lab Use

Large Image : Automatic Door Low Temp Sterilization System 200L High Capacity For Lab Use

Product Details:

Place of Origin:	China
Brand Name:	Stertek
Certification:	CE, ISO13485,ISO9001
Model Number:	STL-PW200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	8647USD-17000USD
Packaging Details:	Standard Export Wooden Case
Delivery Time:	15days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/month

Contact Now Chat Now

Automatic Door Low Temp Sterilization System 200L High Capacity For Lab Use

Description

Capacity:	200L	Chamber Size:	950460460mm
Plasma Sterilizer Size:	11407801700mm	H2O2 Filling:	Cassette Type
Sterilization Trays:	2 Trays	Door Structure:	Single Lifting Door Or Pass Through Door
Control:	LCD Touch Screen	Material:	304 Anti-corrosion Type Stainless Steel Or Aluminum 5052
Data:	Printer	Temperature:	50℃±5℃
Highlight:	Automatic Door Low Temp Sterilization System , 200L Low Temp Sterilization System , Lab Use Low Temperature Sterilizer

200L lab use automatic door hydrogen peroxide cartridge sterilizer

Cartridge-based plasma sterilizer is hydrogen peroxide (H₂O₂), in low temperature environment through the electromagnetic field of hydrogen peroxide (H₂O₂) to form hydrogen peroxide (H₂O₂) plasma, combined with hydrogen peroxide (H₂O₂) gas and hydrogen peroxide (H₂O₂) plasma for indoor items at low temperature, dry sterilization, and can effectively dissociate residual hydrogen peroxide (H₂O₂).

In operating rooms, the STL‑PW model delivers virtually immediate access to sterile tools. It’s easy to install and operate. This eliminates the need to send instruments to a central CSSD, thereby reducing the risk of damage or contamination during transport.

Hospital Cartridge Plasma Sterilizer Parameter:

Product Model	STL-PW200
Power Supply	AC380V 50Hz
Power	4.6kVA
Inner Tank Capacity	200L
Inner Dimensions (Length×Width×Height, cm)	954646
Plasma Sterilizer Dimensions (Length×Width×Height, cm)	11478170

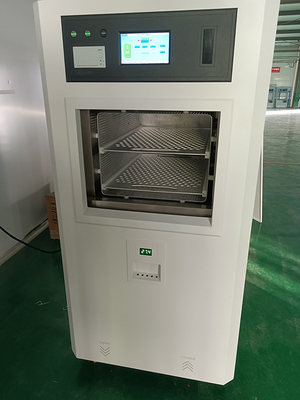

Lab Cartridge Plasma Sterilizer Details

Automatic Door Low Temp Sterilization System 200L High Capacity For Lab Use 0

Plasma Cartridge Sterilizer Features:

1. Structure and Materials

Chamber Material: Rectangular structure made of 304 stainless steel (thickness: 3mm) for enhanced durability and space utilization.
Glow Electrode Grid: Made of 5052 aluminum alloy (thickness: 3mm).
Sterilization Chamber Heating: Hexahedral PTC silicone plate with independent temperature control ensures uniform heat and dual-temperature protection.
Door Structure: Vertical automatic lifting door with anti-clamp safety system and foot-sensing open/close function.
Door Safety Lock: Auto-lock system prevents opening during sterilization to ensure safety.

2. Sterilization System

Sterilant Type: Cassette-based 58% hydrogen peroxide; each cassette contains 12 x 5ml capsules.
Sterilization Method: H₂O₂ plasma technology with in-line purification, reaching over 93% purity. No toxic residues.
Sterilization Temperature: 50℃ ± 5℃
Sterilization Cycles:
- Fast cycle: 25 minutes
- Standard cycle: 35 minutes
- Enhanced cycle: 55 minutes

3. Control & Display

Controller: Siemens PLC with advanced program logic and safety.
Touchscreen: 7-inch high-resolution color display with real-time cycle visualization.
Display Functions: Pressure, temperature, time, process stage, cycle mode, and alarms.
Printer: Micro printer for cycle reports including parameters, graphs, start/end times.
Memory Storage: Stores over 8000 sterilization records, power-off memory retention.
USB Port: Supports export and backup of sterilization records.

4. Sensors & Accuracy

Pressure Sensor: High-accuracy transmitter for stable pressure control.
Temperature Sensor: Dachang brand, small error, stable readings.
Filter System: Ultrafine aseptic filter with filtration precision ≤ 0.22μm.

5. Plasma & Vacuum System

Plasma Generator: RF glow discharge, 19kHz frequency, max power 500W.
Plasma Generation Mode: Single AC discharge mode ensuring 100% success rate.
Vacuum Pump: High-vacuum rotary vane pump with H₂O₂ resistance; 16 m³/h capacity; <65dB operation sound.
Vacuum Protection: Phase sequence protection prevents motor reversal.
Oil Mist Filter: Captures and recycles mist to reduce emissions and oil consumption.

6. Safety & Environmental Protection

Alarming System: Real-time monitoring with automatic error display and Chinese alert interface.
Sterilant Safety: Plasma process breaks H₂O₂ into water and oxygen, leaving no residue.
Operator Protection: UV light from plasma is fully shielded and invisible to the user.
Environmental Impact: Non-toxic, safe for environment and personnel.

7. Accessories & Validation

Consumables Included: Indicator cards, biological indicators, adhesive tape, incubator, sterilization bags – all provided by the manufacturer.
Sterilization Validation: Validated for 2m Teflon lumen (1mm ID) and 500mm stainless steel lumen (1mm ID) per provincial sterility test report.
Biological Incubator: 56℃ ± 3℃, 48-hour cycle for biological monitoring.

Application of the plasma sterilizer:

The STL‑PW offers an efficient sterilization solution for heat- and moisture-sensitive equipment in CSSDs as well as gastroenterology and respiratory endoscopy clinics.
Items and materials that can be sterilized:
Hysteroscopes, laparoscopes, laryngoscopes, probes, rigid endoscopes, flexible endoscopes, fiber optic cables for ophthalmic lenses, intracranial sensors, cryotherapy probes, prostatectomy devices, esophageal dilators, defibrillator motors for electrocautery equipment, laser handpieces, metal products, glass products, silicone products, rubber products, etc.

Our Factory

Automatic Door Low Temp Sterilization System 200L High Capacity For Lab Use 1

Why Choose Us?

Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

Q: What are your payment terms?
A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
Q: What is the delivery time?
A: About 15 working days for one unit.
Q: What certifications does the cassette-type plasma sterilizer have?
A: CE, ISO 13485, ISO 9001.
Q: What warranty and after-sales support of the H2O2 cartridge sterilizer do you offer?
A: 12-month warranty from installation. We offer:
① Remote technical support via phone, email, and video.
② Operation & maintenance training (manuals, online/on-site).
③ Ample spare parts stock.
24/7 technical response guaranteed.
Q: How do you ship the plasma sterilizer?
A: Ship by Sea or Air
① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
Q: What trade terms do you support?
A: EXW, FOB, CFR, CIF, and DDP.
Q: Are you a factory or a trading company?
A: We are a plasma sterilizer and autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Related sterilizers

We specialize in a wide range of low temperature sterilization solutions, including both cassette-style plasma sterilizers and capsule-type low temperature plasma units, designed for safe and efficient processing of thermolabile medical instruments.

Our broad selection of steam sterilizers includes:

Large rectangular chamber steam autoclaves for centralized sterilization departments,
Horizontal cylindrical pulse-vacuum sterilizers with advanced sterilization cycles,
Vertical gravity steam sterilizers for general-purpose use,
Vertical pulse-vacuum autoclaves with automatic drying and programmable settings,
Compact benchtop gravity displacement autoclaves for labs and clinics,
Class B tabletop steam sterilizers, compliant with EN standards for wrapped and hollow instruments,
And portable steam sterilizers, ideal for field operations and small-scale facilities.

We also supply ethylene oxide sterilization equipment, including both small EO sterilizers for clinical settings and large-volume EO gas sterilization systems for hospitals and manufacturers handling heat-sensitive tools and packaging.
