Product Details:
|
| Volume: | 35L/50L | Inner Chamber: | Stainless Steel |
|---|---|---|---|
| Wokring Temperature: | 121-134℃ | Power Type: | Electric |
| Sterilization Method: | Steam Pressure | Plug: | US/UK/EU Plug |
| Application: | Texitile/Sold/Liquid/Rubber | Operation Laguage: | English Or Customize |
| Voltage: | 110V/220V 50/60HZ | Display: | Touch Screen |
| Highlight: | 9.25 gallon table top autoclave,35 liter autoclave with accessories,class B table top autoclave |
||

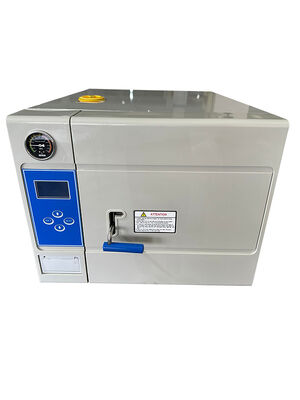

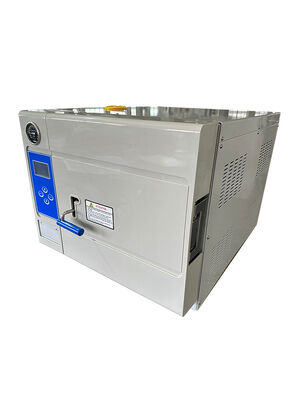

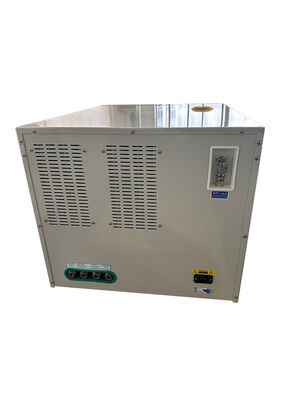

Class B Type Tabletop Autoclave,
Sterilization made Simpler, Safer and Smarter
|
The STT-HB is a fully-featured, intelligent Class B tabletop autoclave designed for comprehensive safety and effortless operation. It ensures perfect sterilization results with advanced Class B cycles including three-times pre-vacuum and drying, validated by integrated BD and vacuum tests. The autoclave features a user-friendly LCD interface with touch keys for simple program selection across multiple instrument types. Equipped with a fast, independent steam generator and a dual water tank system, it prioritizes both efficiency and convenience. Comprehensive safety is guaranteed through a multi-lock door system and overload protections, while a built-in mini printer provides complete traceability for every cycle. |
|
MODEL No. |
STT-HB35 |
STT-HB50 |
|
Capacity |
35L |
50L |
|
Chamber Size(ø x Depth) |
ø 300×500mm |
ø 340×550 |
|
Chamber Material |
304 stainless steel |
|
|
Design pressure |
0.3Mpa |
|
|
Design temp. |
150℃ |
|
|
Max. Working pressure |
0.25Mpa |
|
|
Max. Working temp. |
138℃ |
|
|
Timer Range |
0-99 min |
|
|
Heat average |
≤ ± 1℃ |
|
|
Power |
2.7 KW |
|
|
Power Supply |
AC220V/110V, 50HZ/60HZ, single phase |
|
|
Dimension(mm) |
730×550×510 |
770×600×540 |
|
Net weight |
93kg |
106 kg |
|
Package dimension(mm) |
820×680×650 |
880×730×700 |
|
Gross Weight |
115kg |
130kg |
|
Air Removal |
Pre-Vacuum |
|
|
Drying |
Post-Vacuum |
|
|
Air Filter |
≤ 0.22 μm HEPA Filter |
|
|
Data Printer |
Built-in Mini Printer |
|
|
Water Reservoir Capacity |
4 Liters / 1.1 Gallons |
|
|
Altitude |
2000m |
|
|
Program |
Instrument (134 °C) BD Test Textile (134 °C) Vacuum Leakage Test Rubber (121 °C) Drying Only Fluid (115 °C) Custom Program (user-adjustable) |
|
Sterilization tray holder with a capacity of 4 wire-mesh
trays, made of 304 stainless steel.
|
|
Water DistillerWater distiller turns water into steam to remove fluoride, arsenic, lead, viruses and other contaminants, protecting your sterilizer and instruments at a fraction of cost. |
316 SUS ChamberSupports custom 316 chamber for greater durability. |
