Capacity: | 50Liters | Door Structure: | Bolt Open Door |
---|---|---|---|
Number Of Baskets: | 2 Pcs Sterilizing Baskets | Display: | LED Display |
Data Recording: | No Printer | Material: | Stainless Steel 304 |
Machine Size: | 520*500*970mm | Net Weight: | 56kg |
Max Working Temp.: | 138℃ | Working Press.: | 0.25Mpa |
Highlight: | 50l vertical autoclave machine,50l vertical laboratory autoclave,hospital vertical autoclave machine |

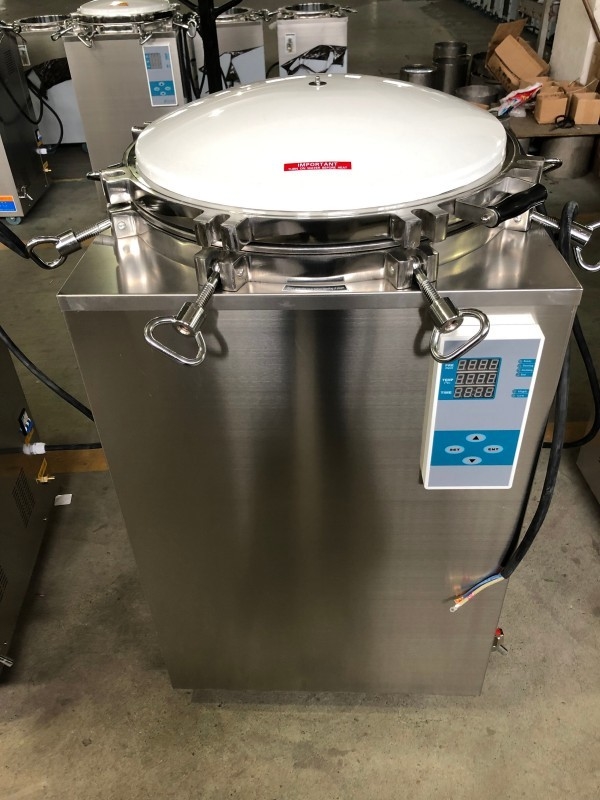

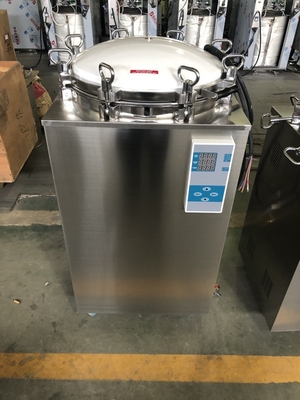

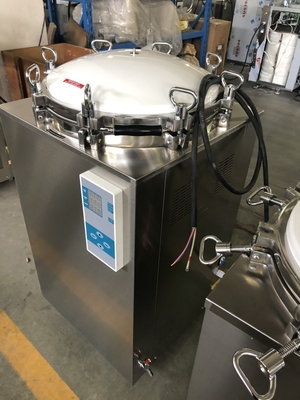

This Bolt Door High Temperature Vertical Autoclave are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
MODEL |
STV-LB35 |
STV-LB50 |
STV-LB75 |
STV-LB100 |
STV-LD120 |
STV-LD150 |
Chamber volume |
35L φ318×450mm |
50L φ340×550mm |
75L φ400×600mm |
100L φ440×650mm |
120Lφ 480×660mm |
150L φ510×740mm |
Design pressure |
0.3MPa |
|||||
Design temperature |
150℃ |
|||||
Max. working pressure |
0.25MPa |
|||||
Max. working temperature |
138℃ |
|||||
Heat average |
≤±1℃ |
|||||
Timer range |
0~99min or 0~99hour59min |
|||||
Power |
1×2.5KW/AC220V.50Hz |
2×1.5KW/AC220V.50Hz |
3×1.5KW/AC220V.50Hz |
3×1.5KW/AC220V.50Hz |
3×2.0KW/AC220V.50Hz |
3×2.0KW/AC220V.50Hz |
Overall dimension(mm) |
470×450×840 |
520×500×970 |
550×530×990 |
580×560×1060 |
630×610×1130 |
660×640×1130 |
Transport dimension(mm) |
540×540×1000 |
580×580×1130 |
610×610×1160 |
640×640×1220 |
690×690×1290 |
730×730×1290 |
G.W/N.W |
64kg / 47kg |
77kg / 56kg |
90kg / 70kg |
98kg / 76kg |
125kg / 103kg |
138kg / 111kg |
Fully Stainless Steel Structure
Durable and corrosion-resistant build ensures long service life and easy maintenance.
LED Display with Touch-Key Control
Clear digital interface for real-time monitoring and easy operation.
Automatic Cool Air and Steam Discharge
Enhances user convenience by auto-releasing residual air and steam after each cycle.
Auto Shut-Off with Buzzer Reminder
Alerts the user when sterilization is complete and powers off automatically for safety.
User-Friendly Operation
Simple, safe, and reliable—designed for ease of use in medical and laboratory environments.
Equipped with Two Stainless Steel Sterilizing Baskets
Allows efficient loading and organized sterilization of instruments.
Application:
Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
