Product Details:
Contact Now
Chat Now
|
Volume: | 50 Liters | Door Structure: | Handwheel Door |
---|---|---|---|
Number Of Baskets: | 2 Pcs Sterilizing Baskets | Control: | LCD Touch Screen Display |
Data Recording: | Printer | Drying Function: | Vacuum Drying |
Chamber Size: | ∅340*550mm | Net Weight: | 100kg |
Working Temp.: | 138℃ | Working Press.: | 0.25Mpa |
Highlight: | 50 Litres Vertical Autoclave Machine,Touch Screen Vertical Autoclave Machine,50 Litres Steam Sterilizer Autoclave |

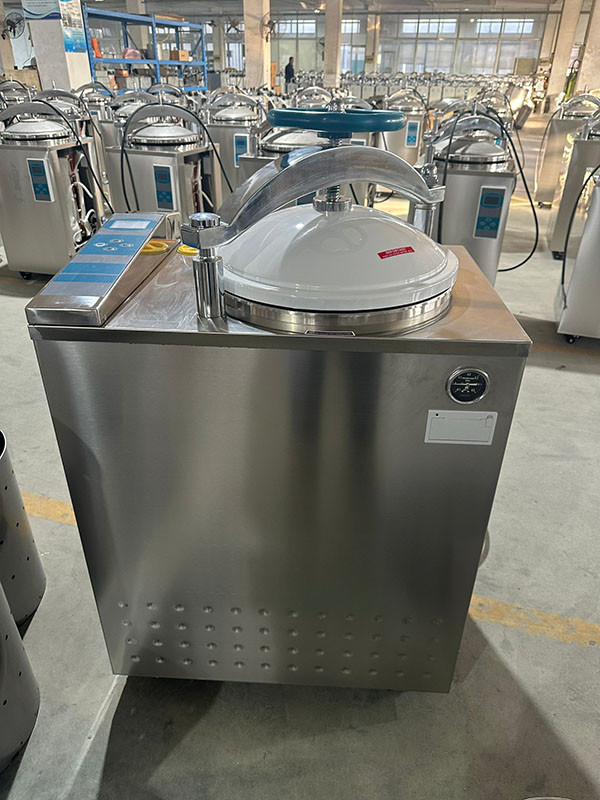

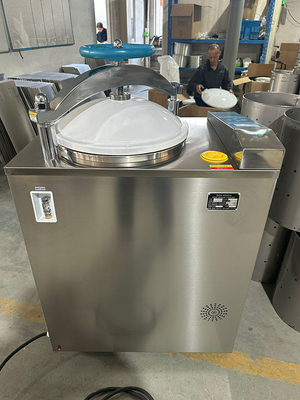

The autoclave vertical 50 litres are assembled with heating system, micro - computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are suitable for sterilizing equipment, dressings, containers, liquids, culture medium, waste, etc. in hospitals, disease control centers, P2 biological laboratories and blood stations, etc. of scientific research institutes.
Technical DataMODEL | STV-HV50 |
Chamber volume | 50Lφ340×550mm |
Design pressure | 0.3MPa |
Design temperature | 150℃ |
Max. working pressure | 0.25MPa |
Max. working temperature | 138℃ |
Heat average | ≤±1℃ |
Timer range | 0 - 99min |
Power | (3.2 + 1.6)KW/AC220V.50Hz |
Overall dimension(mm) | 660×460×1160 |
Transport dimension(mm) | 740×550×1270 |
Full Stainless Steel Construction
Durable, corrosion-resistant chamber and body ensure long-term use and hygiene compliance.
Quick-Open Door with Hand Wheel Design
Manual hand wheel structure for fast, safe, and reliable chamber access.
Advanced Door Safety Lock System
Prevents accidental opening under pressure for maximum operator safety.
Fully Automatic Computer Control
Intelligent operation covering water filling, heating, sterilization, steam exhaust, and drying—all in one cycle.
Digital Display with Touch Control Panel
Real-time process visibility and easy operation via modern touch-key interface.
Built-in Over-Temperature and Over-Pressure Protection
Automatic system safeguards to ensure safe and stable sterilization performance.
Steam-Water Internal Circulation System
No external steam discharge—keeping the work environment clean, dry, and eco-friendly.
Automatic Water Shortage Protection
Alerts and halts the process in case of insufficient water level, protecting the equipment and load.
Self-Inflating Silicone Seal
Ensures airtight sealing during the sterilization cycle without manual adjustment.
Automatic Shut-off with Audible Reminder
Machine powers off and emits a buzzer sound once sterilization is complete.
Equipped with Two Stainless Steel Sterilization Baskets
Allows flexible and efficient loading of medical or laboratory instruments.
Integrated Drying Function
Thorough post-sterilization drying for improved effectiveness and usability.
Application:
Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
Our Vertical Vacuum Steam Sterilizer (Class B Autoclave) leads a comprehensive portfolio of medical-grade sterilization equipment, featuring:
Vertical Gravity Autoclaves for CSSD
Vertical Circulation Steam Sterilizers with Drying Function
Compact Class N Sterilizers for Dental Clinics
Tabletop Vacuum Autoclaves for Medical Offices
Large Capacity Hospital Steam Sterilizers
Pre-Vacuum Sterilizers for Surgical Instrument Processing
Portable Autoclaves for Mobile Medical Units
