Door Structure: | Handwheel Door | Number Of Baskets: | 2 Pcs Sterilizing Baskets |
---|---|---|---|
Display: | LCD Display | Data Recording: | Printer Is Optional |
Capacity: | 100 Liters | Drying Function: | Optional Drying System |
Machine Size: | 580*560*1290mm | Net Weight: | 109kg |
Max Working Temp.: | 138℃ | Working Press.: | 0.25Mpa |
Highlight: | 100l vertical autoclave machine,100l vertical laboratory autoclave,100 liters vertical autoclave machine |

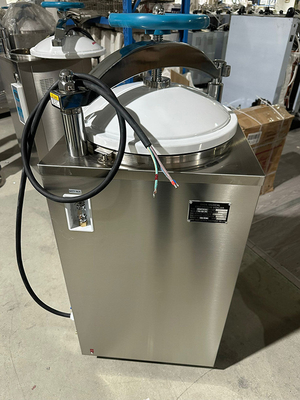

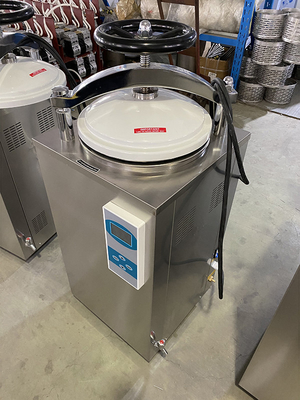

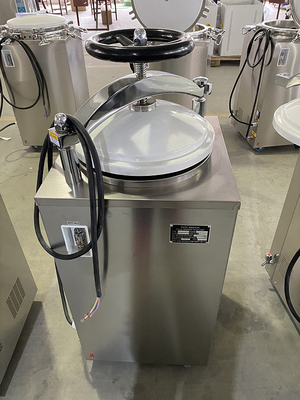

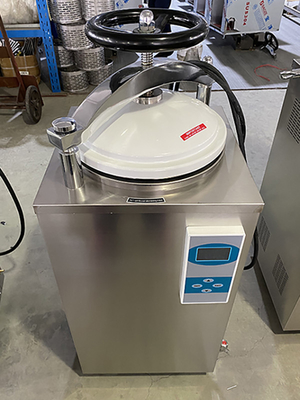

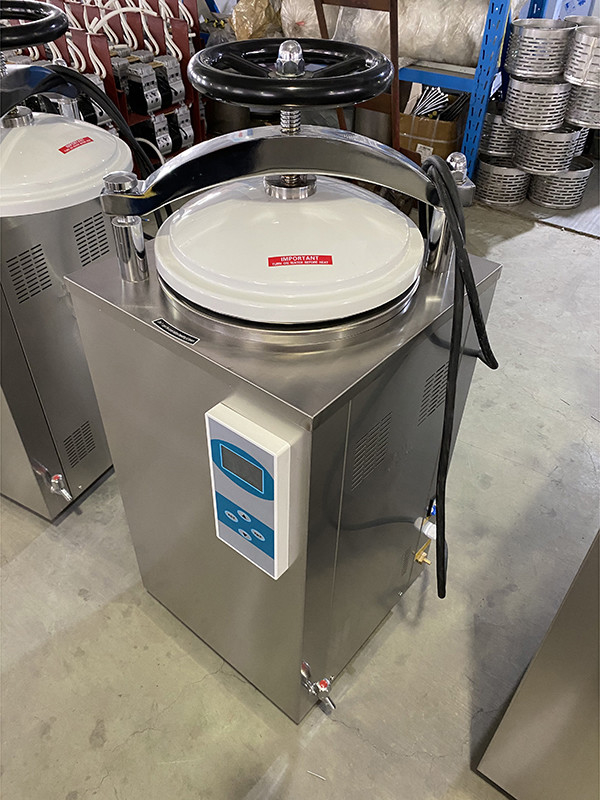

This vertical top loading autoclave are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
MODEL |
STV-HD35 |
STV-HD50 |
STV-HD75 |
STV-HD100 |
Chamber volume |
35L |
50L |
75L |
100L |
318 x 450mm |
340 x 550mm |
400 x 600mm |
440 x 650mm |
|
Max. working temperature |
138℃ |
|||
Max. working pressure |
0.25Mpa |
|||
Heat average |
≤±1℃ |
|||
Timer range |
0~99min or 0~99hour59min |
|||
Power |
2.5Kw/AC220V.50Hz |
3Kw/AC220V.50Hz |
4.5Kw/AC220V.50Hz |
|
Overall dimension |
470x450x1020 |
520 x 490 x 1150 |
550x530x1180 |
580 x 560 x 1290 |
Transport dimension |
540x540x1160 |
580 x 580 x 1280 |
610 x 610 x 1320 |
640 x 640 x 1400 |
G.W/N.W |
84Kg/65Kg |
97Kg/78Kg |
115Kg/97Kg |
135Kg/109Kg |
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
