35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer

35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer
35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer 35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer

Large Image :  35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-LD35
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer

Description
Capacity: 35L Chamber Size: Ø300×500mm
Door Structure: Bolt Lock Door Bucket Number: 1 Pcs Sterilizing Bucket
Display: LED Display Data Recording: No Printer
Material: Stainless Steel 304 Net Weight: 41kg
Max Working Temp.: 134℃ Working Press.: 0.22Mpa
Highlight:

gravity exhaust vertical steam sterilizer

,

35l vertical steam sterilizer

,

35l vertical pressure steam sterilizer

Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer

This high temperature vertical steam sterilizer are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Main Parameter:

Model STV-LD35
Volume 35L
Power 3.5kW
Voltage AC 220V,50HZ
Rated working pressure 0.22Mpa
Rated working temperature 134℃
Sterilization temperature 50℃~134℃
Sterilization time setting range 4~120 min
Drying time setting range 0~240min
Chamber volume  Ø300×500
Bucket dimension Ø280×400
Basket dimension(optional) Not optional
Outer dimension 400×400×860
Packing size (L× W× H )mm 550×500×1030
Gross/net weight 58/41KG

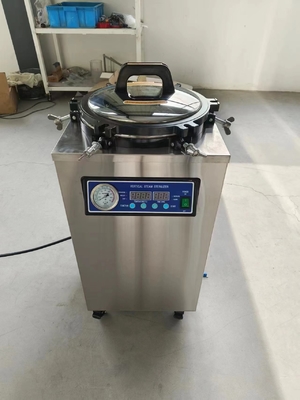

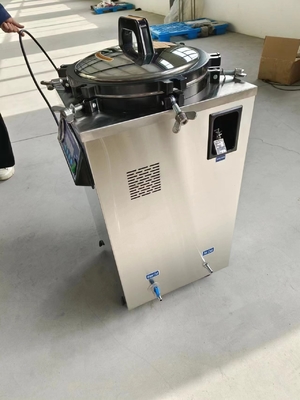

Stainless Steel Vertical Autoclave Details

35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer 0

35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer 1

Efficient Sterilization Vertical Autoclave Features:

Quick Opening Vertical Sterilizer Structure & Build

  • Bolt-locking structure for reliable sealing

  • High-quality stainless steel construction

  • Self-expanding sealing system

  • Includes stainless steel bucket or basket

Bolt Lock Door Vertical Autoclave Control System

  • Microcomputer automatic control with freely adjustable sterilization parameters

  • Digital display with touch button interface

  • Standard test interface

Vertical Sterilizer Safety & Protection

  • Safety interlocking device

  • Integrated automatic protection functions:
     • Over-temperature protection
     • Over-pressure protection with self-discharge
     • Low water level protection
     • Anti dry-burning

Sterilization Performance

  • Automatic cooling air discharge

  • Automatic steam exhaust at the end of sterilization

  • Buzzer reminder and automatic stop after cycle completion

Applications of Vertical Steam Autoclave:

  1. Laboratory / Scientific Research:
    Suitable for glassware, culture media, surgical instrument kits (requires matching with instrument baskets), and biological waste (must be processed in accordance with local regulations).
  2. Hospital / Clinic / Medical Facilities:
    Ideal for sterilizing surgical instrument sets, dressing kits, and medical fabrics.
  3. Pharmaceutical / Bioengineering / Food Industry:
    Applied to the sterilization of production containers, laboratory tools, raw materials, and packaging materials (compatibility must be confirmed prior to use).

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: Verical autoclave delivery time is about 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support do you offer for the vertical autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the vertical autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Related Autoclaves:


Besides bolt door vertical sterilizer, we also offer a wide range of quick opening vertical sterilizer, front loading horizontalautoclave, benchtop autoclave, vacuum autoclave, small portable autoclave,  and customized sterilization solutions for various industries
