Capacity: | 150L | Chamber Size: | Ø500×780mm |
---|---|---|---|
Door Structure: | Bolt Lock Door | Basket: | 2 Pcs Baskets |
Display: | LED Display | Packing Size: | 750×700×1370mm |
Steam Sterilizer Material: | Stainless Steel | Autoclave Weight: | 90kg |
Max Working Temp.: | 134℃ | Working Press.: | 0.22Mpa |
Highlight: | Bolt Locking Vertical Autoclave Machine,Hospital Vertical Autoclave Machine,Hospital Steam Autoclave Sterilizer |

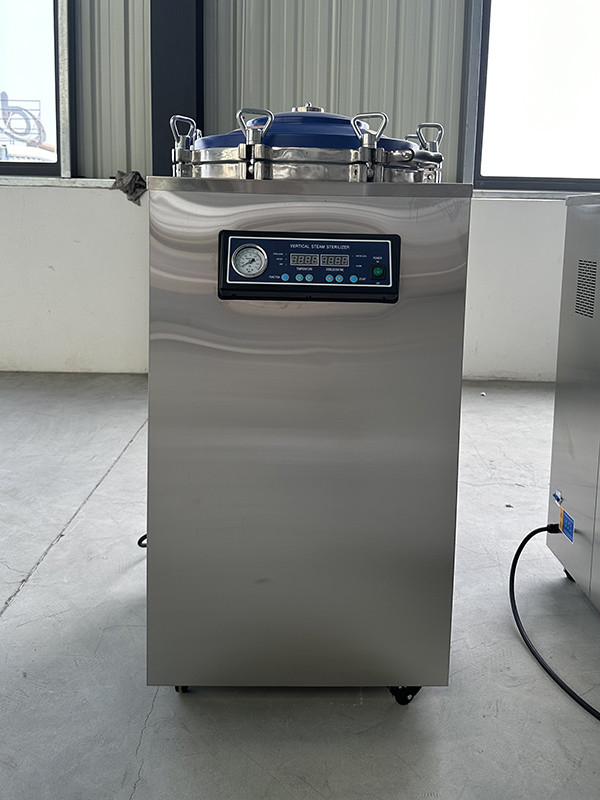

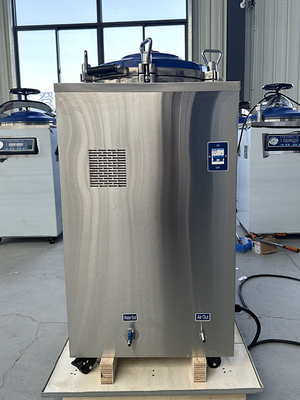

This Easy To Operate Vertical Steam Sterilizer are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Model | STV-LD150 |
Volume | 150L |
Power | 6.0KW |
Voltage | AC 220V,50HZ |
Rated working pressure | 0.22Mpa |
Rated working temperature | 134℃ |
Sterilization temperature | 50℃~134℃ |
Sterilization time setting range | 4~120 min |
Drying time setting range | 0~240min |
Chamber volume | Ø500×780 |
Bucket dimension | Ø470×720 |
Basket dimension(optional) | Ø460×350×2 |
Outer dimension | 605×649×1210 |
Packing size (L× W× H )mm | 750×700×1370 |
Gross/net weight | 116/90KG |
Compact Design Top Loading Autoclave Structure & Build
Bolt-locking structure for reliable sealing
High-quality stainless steel construction
Self-expanding sealing system
Includes stainless steel bucket or basket
Traditional Bolt Type Vertical Steam Sterilizer Control System
Microcomputer automatic control with freely adjustable sterilization parameters
Digital display with touch button interface
Standard test interface
Top Opening Manual Vertical Autoclave Safety & Protection
Safety interlocking device
Integrated automatic protection functions:
• Over-temperature protection
• Over-pressure protection with self-discharge
• Low water level protection
• Anti dry-burning
Sterilization Performance
Automatic cooling air discharge
Automatic steam exhaust at the end of sterilization
Buzzer reminder and automatic stop after cycle completion
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
Related Autoclaves:
Besides Gravity Type Vertical Steam Sterilizer we also offer a wide range of Manual Top Loading Steam Autoclave,Vertical Non Vacuum Pressure Steam Sterilizer, Single Wall Stainless Steel Vertical Autoclave, Small Clinic Portable Steam Sterilizer, Laboratory Vacuum Steam Sterilizer, and customized sterilization solutions for various industries
