Capacity: | 75L | Door Type: | Handwheel Door |
---|---|---|---|
Number Of Baskets: | 2 Pcs Sterilizing Baskets | Control Display: | LED Display |
Machine Material: | Stainless Steel 304 | Drying Function: | Yes |
Chamber Size: | ∅400*625mm | Net Weight: | 114kg |
Working Temp.: | 134℃ | Working Press.: | 0.22Mpa |
Highlight: | Internal Circulation Vertical Pressure Steam Sterilizer,Quick Open Vertical Pressure Steam Sterilizer,Internal Circulation Vertical Laboratory Autoclave |
This Internal Circulation Autoclave Machine mainly used in hospital, laboratories, universities and other institutes where users need to sterilize temperature resistance items. It is ideal equipment for surgical instruments, fabrics, glasses, culture media etc.
Model | STV-C75 |
Volume | 75L |
Power | 4.5kW |
Voltage | AC 220V,50HZ |
Rated working pressure | 0.22Mpa |
Rated working temperature | 134℃ |
Sterilization temperature | 50℃~134℃ |
Sterilization time setting range | 4~120 min |
Drying time setting range | 0~240min |
Chamber volume | Ø400×625 |
Bucket dimension | Ø380×560 |
Basket dimension(optional) | Ø360×280×2 |
Outer dimension | 770×570×1185 |
Packing size (L× W× H )mm | 840×610×1310 |
Gross/net weight | 145/114KG |

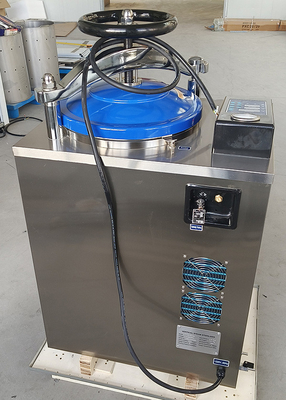

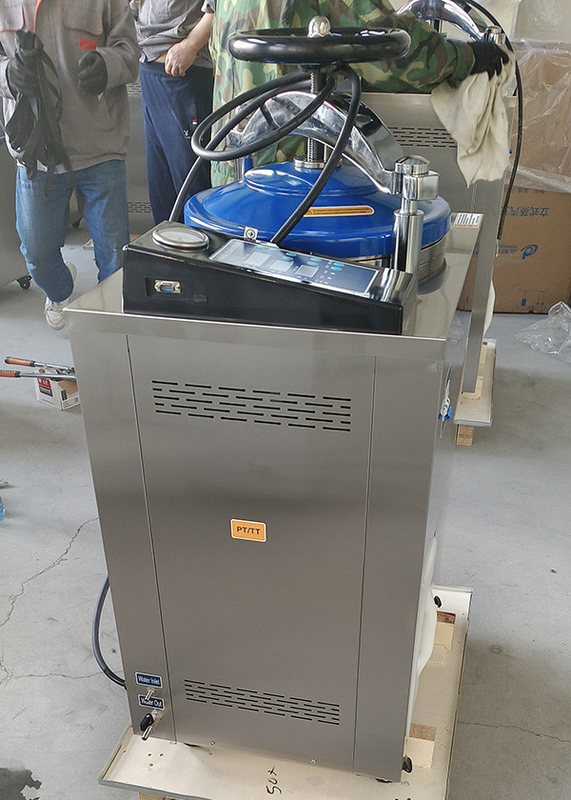

Hand Wheel and Quick Opening Structure
Easy operation with a manual hand wheel and fast-access door mechanism for efficiency and safety.
Internal Steam Circulation System
Ensures uniform temperature distribution for reliable and effective sterilization.
High-Quality Stainless Steel Chamber
Durable and corrosion-resistant 304 stainless steel construction for long-lasting performance.
Integrated Drying Function
Supports both sterilization and drying in one cycle for enhanced convenience.
Microcomputer Control Panel
Fully automatic control with user-defined sterilization parameters for flexible operation.
Safety Interlocking Device
Prevents door opening under pressure, ensuring operator safety during use.
Digital Display with Touch Buttons
Modern interface for intuitive operation and real-time monitoring of sterilization status.
Standard Test Interface Port
Enables professional testing and validation of sterilization cycles.
Self-Expanding Silicone Seal
High-quality automatic sealing ring ensures airtight chamber integrity during operation.
Multiple Safety Protections
Over-temperature protection
Over-pressure self-discharge
Low water level alarm
Anti dry-burning protection
Comes with Stainless Steel Bucket or Basket
For flexible loading of instruments and materials.
Buzzer Reminder and Auto Shutoff
Alerts when sterilization is complete and stops operation automatically.
Automatic Cold Air Discharge and Steam Exhaust
Fully automated post-cycle functions for user convenience and safety.
Optional Feature: External Printer
For cycle documentation and compliance record keeping.
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
Related Autoclaves:
We supply a complete series of autoclave sterilizers designed for hospitals, labs, clinics, and research centers. Our products include Internal Circulation Sterilizers, Gravity Exhaust Autoclaves, and Vacuum Steam Sterilizers to meet different sterilization demands. For space-saving options, we offer Compact Table Autoclaves and Vacuum Table Sterilizers. Large-capacity sterilization is handled by Horizontal Cylindrical Autoclaves and High Vacuum Horizontal Sterilizers. For convenient use in small clinics or fieldwork, we also provide Portable Pressure Sterilizers. We offer trusted sterilization solutions for medical and laboratory professionals.
