100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

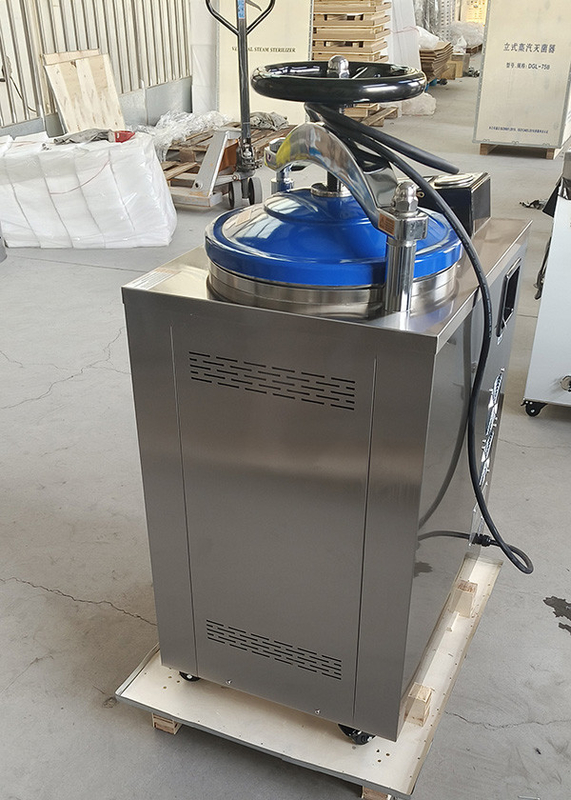

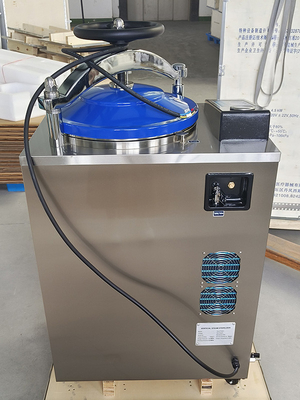

100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media

100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media
100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media 100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media

Large Image :  100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-C100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media

Description
Capacity: 100L Door Type: Handwheel Door
Number Of Baskets: 2 Pcs Sterilizing Baskets Control Display: LED Display
Machine Material: Stainless Steel 304 Drying Function: Yes
Chamber Size: ∅450*650mm Net Weight: 129kg
Working Temp.: 134℃ Working Press.: 0.22Mpa
Highlight:

Internal Circulation Vertical Steam Sterilizer Autoclave

,

Culture Media Vertical Steam Sterilizer Autoclave

,

Culture Media Laboratory Steam Sterilizer

100L Internal Circulation Steam Sterilizer for Culture Media

This Internal Circulation Steam Autoclave with Drying mainly used in hospital, laboratories, universities and other institutes where users need to sterilize temperature resistance items. It is ideal equipment for surgical instruments, fabrics, glasses, culture media etc.

Main Parameter:

Model STV-C100
Volume 100L
Power 4.5kW
Voltage AC 220V,50HZ
Rated working pressure 0.22Mpa
Rated working temperature 134℃
Sterilization temperature 50℃~134℃
Sterilization time setting range 4~120 min
Drying time setting range 0~240min
Chamber volume  Ø450×650
Bucket dimension Ø420×540
Basket dimension(optional) Ø410×300×2
Outer dimension 788×588×1255
Packing size (L× W× H )mm 870×650×1380
Gross/net weight 156/129KG

STV-C Vertical Autoclave Details

100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media 0

Autoclaves Features:

  1. Hand Wheel and Quick Opening Structure
    Easy operation with a manual hand wheel and fast-access door mechanism for efficiency and safety.

  2. Internal Steam Circulation System
    Ensures uniform temperature distribution for reliable and effective sterilization.

  3. High-Quality Stainless Steel Chamber
    Durable and corrosion-resistant 304 stainless steel construction for long-lasting performance.

  4. Integrated Drying Function
    Supports both sterilization and drying in one cycle for enhanced convenience.

  5. Microcomputer Control Panel
    Fully automatic control with user-defined sterilization parameters for flexible operation.

  6. Safety Interlocking Device
    Prevents door opening under pressure, ensuring operator safety during use.

  7. Digital Display with Touch Buttons
    Modern interface for intuitive operation and real-time monitoring of sterilization status.

  8. Standard Test Interface Port
    Enables professional testing and validation of sterilization cycles.

  9. Self-Expanding Silicone Seal
    High-quality automatic sealing ring ensures airtight chamber integrity during operation.

  10. Multiple Safety Protections

  • Over-temperature protection

  • Over-pressure self-discharge

  • Low water level alarm

  • Anti dry-burning protection

  1. Comes with Stainless Steel Bucket or Basket
    For flexible loading of instruments and materials.

  2. Buzzer Reminder and Auto Shutoff
    Alerts when sterilization is complete and stops operation automatically.

  3. Automatic Cold Air Discharge and Steam Exhaust
    Fully automated post-cycle functions for user convenience and safety.

Optional Feature: External Printer
For cycle documentation and compliance record keeping.

Applications of Vertical Medical Autoclave Sterilizer

  1. Laboratory / Scientific Research:
    Suitable for glassware, culture media, surgical instrument kits (requires matching with instrument baskets), and biological waste (must be processed in accordance with local regulations).
  2. Hospital / Clinic / Medical Facilities:
    Ideal for sterilizing surgical instrument sets, dressing kits, and medical fabrics.
  3. Pharmaceutical / Bioengineering / Food Industry:
    Applied to the sterilization of production containers, laboratory tools, raw materials, and packaging materials (compatibility must be confirmed prior to use).

100L Internal Circulation Vertical Steam Sterilizer Autoclave For Culture Media 1

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: Verical autoclave delivery time is about 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support do you offer for the vertical autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the vertical autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Related Autoclaves:



We provide a full range of steam autoclave machines for hospitals, laboratories, clinics, and research facilities. Our selection includes Internal Circulation Sterilization Units, Gravity Discharge Autoclaves, and Vacuum Assisted Steam Sterilizers to meet various sterilization needs. For small-scale applications, we offer Desktop Autoclaves and Vacuum Type Tabletop Sterilizers. For large-capacity operations, choose our Horizontal Cylindrical Sterilizers and Advanced Vacuum Horizontal Autoclaves. We also offer Portable Steam Sterilizers for flexible and mobile use. One-stop sterilization solutions for medical and lab professionals.
