100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

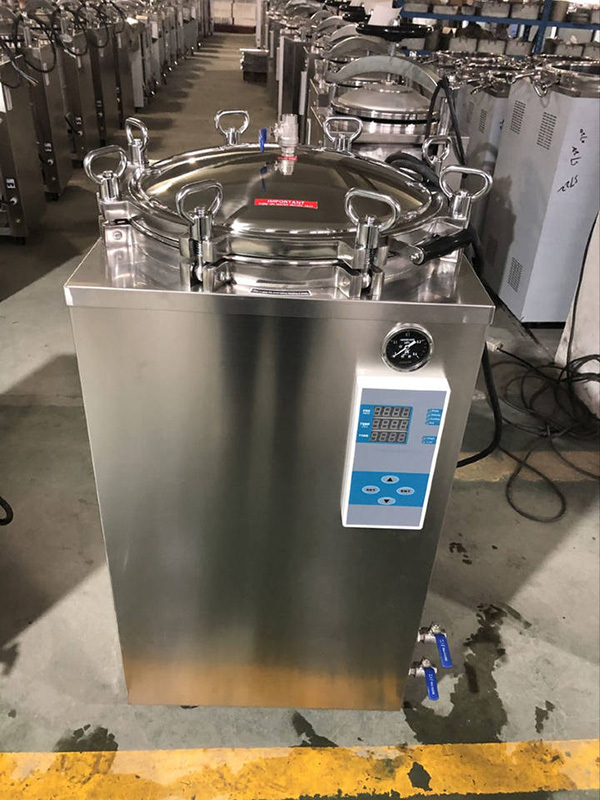

100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave

100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave
100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave 100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave

Large Image :  100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-FB100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave

Description
Capacity: 75 Liters Packing Size: 640*640*1220mm
Gross Weight: 98kg Door Type: Bolt Door
Number Of Baskets: 2 Pcs Sterilizing Baskets Pressure: Counter Pressure
Display: LED Display Material: Stainless Steel 304
Max Working Temp.: 138℃ Working Press.: 0.25Mpa
Highlight:

100L Laboratory Steam Sterilizer

,

Vertical Laboratory Steam Sterilizer

,

100L Counter Pressure Autoclave

Laboratory Use Steam Sterilizer Vertical Counter Pressure Autoclave

The vertical laboratory autoclave is a kind of micro-computer controlled sterilizing equipment in medium-size, it directly fills the water into the sterilization chamber for electric heating to generate the high pressure steam as the sterilizing cycle required, then the unit proceeds the sterilization to the articles, the water temperature would rapidly cool down in 3 minutes by the outer connected compressed air injection after the cycle finished, and the articles temperature in chamber could decreased to 30~40℃.

The autoclave is program controlled, there are two operation options for choosing: boiling disinfection the sterilizing temperature of which is lower or equal to 100℃.

The autoclave is with overload protection and buzzer alarm function after sterilization, easy and convenient to operate, safe and reliable.

This autoclave is applicable to the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is especially suitable for sterility test in food research institutions.

Vertical Sterilizer Machine  Parameter:

MODEL

STV-FB100

Chamber volume

100L

φ440×650mm

Design pressure

0.3MPa

Design temperature

150℃

Max. working pressure

0.25MPa

Max. working temperature

138℃

Timer range

0~99min

Power

4.5KW/AC220V.50Hz

Overall dimension(mm)

580*560*1060

Transport dimension(mm)

640*640*1220

G.W/N.W

98kg / 76kg

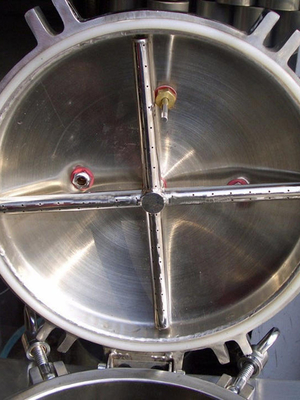

Counter Pressure Vertical Autoclave Details

100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave 0

Automatic Counter Pressure Autoclave Features:

  1. Immersed Electric Heating Tubes with Dry-Burning Protection
    The unit features submerged heating elements that automatically shut off when the water level drops below the safety line, accompanied by an audible alarm for user awareness.

  2. Automatic Timer Control for Sterilization Time
    Built-in timer enables precise, hands-free control of the sterilization process, improving efficiency and consistency.

  3. Full Stainless Steel Construction
    Made from high-quality, corrosion-resistant stainless steel for easy cleaning, low maintenance, and extended lifespan.

  4. Multi-Level Safety Protection System

    • Automatic Pressure Relief: Safety valve releases pressure exceeding 0.25 MPa.

    • Overheat Protection: Power automatically shuts off if temperature reaches 140°C.

    • Current Overload & Interlock Protection: Ensures safe operation under all conditions.

  5. Versatile Sterilization Applications
    Ideal for disinfecting and sterilizing food packaging, laboratory utensils, instruments, and other materials. Especially suitable for sterility testing in food research laboratories.

Application of  autoclave for culture media  :
Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave 1

Our Factory

100L Laboratory Steam Sterilizer Vertical Counter Pressure Autoclave 2

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support of the counter pressure autoclave do you offer?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the counter-pressure steam autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a sterilizer manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
