Capacity: | 1200L | Woking Temperature: | 80 ~ 139 ℃ |
---|---|---|---|
Working Pressure: | 0.25Mpa | Chamber Size: | 1450*680*1180mm |
Weight: | 1700kg About | Sterilization Type: | Water Spray |
Overal Size: | 1700*1550*1950 | Display: | PLC Touch Screen |
Data Recording: | Printer Equipped | Voltage: | 380V, 50hz, Three Phase |
Highlight: | Ampoule Pharmaceutical Device Sterilizer,1200L Pharmaceutical Device Sterilizer,Ampoule water spray sterilizer |

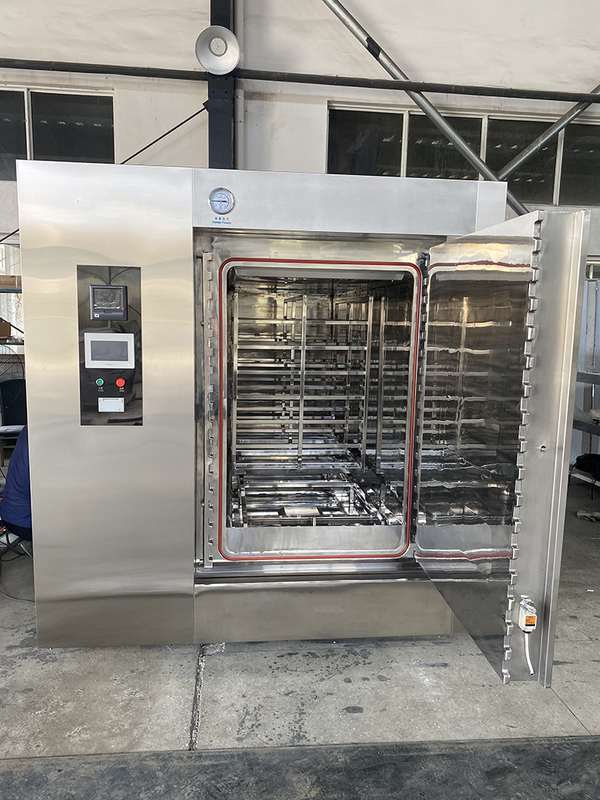

Ampule leak super water sterilizer uses super heated circulating water as sterilization heating carrier to sterilize articles with water spray type sterilization operation.
In the whole working process, super hot water runs in a relatively closed loop system. The equipment has a series of advantages such as high thermal efficiency, temperature uniformity and wide range of temperature control. And effectively prevent secondary pollution in the process of work, supplemented by reverse pressure protection measures. The sterilizer can be used for leak detection in vacuum or color water.
The equipment can be widely used in high and low temperature sterilization of glass bottles, ampoule bottles, plastic bottles and other liquids in pharmaceutical industry, as well as high and low temperature sterilization of various sealed packages, drinking liquids and canned foods in food industry.
Model | STH-RL1200S(D) |
Overall Dimensions (L×W×H)mm | 1700×1550×1950 |
Chamber Size (L×W×H)mm | 1450×680×1180 |
Steam Consumption (Kg/cycle) | ~130 |
Compressed Air Consumption (m³/cycle) | 2.4 |
Water Consumption (Kg/cycle) | ~450 |
Pure Water Consumption (Kg/cycle) | 500 |
Sterilization Vehicle | 2 |
Power (KW) | ≤8 |
Net Weight (KG) | ~1700 |
Design Pressure |
0.3 MPa |
Steam Pressure |
0.3 ~ 0.7 MPa |
Design Temperature |
144 ℃ |
Working Pressure |
0.25 MPa |
Vacuum |
-0.09 MPa |
Working Temperature |
80 ~ 139 ℃ |
Pure Water Pressure |
0.15 ~ 0.3 MPa |
Temperature Equilibrium |
≤ +2.0 ℃ |
Water Source Pressure |
0.15 ~ 0.3 MPa |
Compressed Air Pressure |
0.3 ~ 0.7 MPa |
Power |
The three-phase and five-wire system AC380V, 50HZ |
Horizontal rectangular, inner chamber + stiffener structure
Inner chamber adopts S30408 material, mechanically polished mirror
Toothed + motor locking door structure, low fault and reliability
Door seal is pneumatic, double door interlock
With a standard equipment verification interface

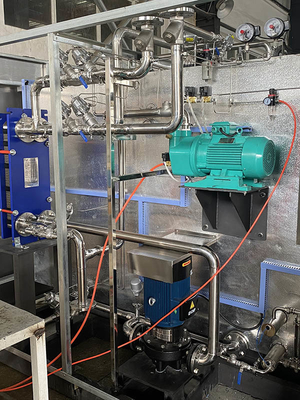

Pipeline system is optimized design, 304 pipe, clamp-on quick loading mode
Control system: HMI man-machine interface, using Siemens touch screen +PLC
FO value and temperature time double ensure the sterilization effect, and has a perfect sterilization record. It has the functions of program selection, parameter setting, equipment operation, report processing, etc., which can be tracked.
Three-level Rights Management
Multiple safety measure
