| Door Structure: | Handwheel Door | Loading Container: | 2 Pcs Sterilizing Baskets |
|---|---|---|---|
| Display: | LED Display | Data Recording: | Printer Optional |
| Material: | Stainless Steel 304 | Drying Function: | Yes |
| Autoclave Type: | Internal Circulation Autoclave | Application: | Glassware, Fabrics, And Culture Media |
| Working Temp.: | 134℃ | Working Press.: | 0.22Mpa |

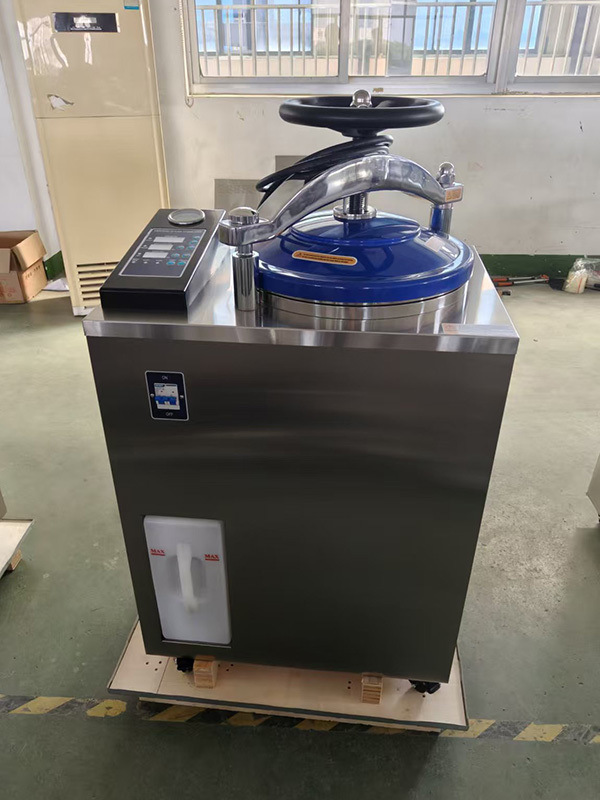

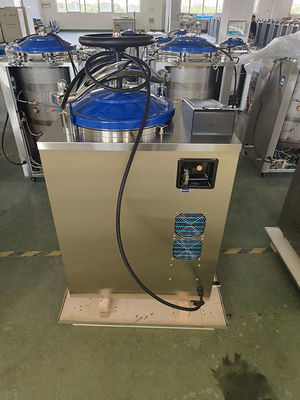

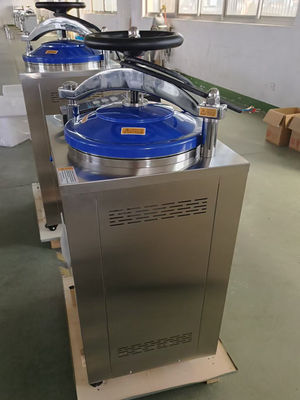

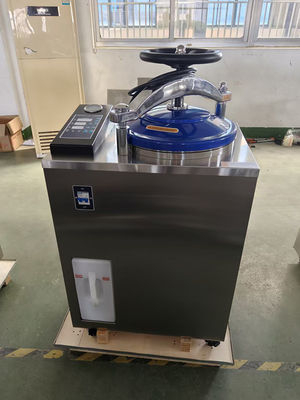

This multifunctional automatic vertical autoclave with internal steam circulation and drying function is widely used in hospitals, laboratories, universities, and research institutes. It provides reliable sterilization for heat-resistant items such as surgical instruments, fabrics, glassware, and culture media.
| Model | STV-C35 | STV-C50 | STV-C75 | STV-C100 |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220V,50HZ | |||
| Rated working pressure | 0.22Mpa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature | 50℃~134℃ | |||
| Sterilization time setting range | 4~120 min | |||
| Drying time setting range | 0~240min | |||
| Chamber volume | Ø350×400 | Ø350×525 | Ø400×625 | Ø450×650 |
| Bucket dimension | Ø330×320 | Ø330×460 | Ø380×560 | Ø420×540 |
| Basket dimension(optional) | Ø320×350 | Ø320×240×2 | Ø360×280×2 | Ø410×300×2 |
| Outer dimension | 698×498×940 | 698×498×1110 | 770×570×1185 | 788×588×1255 |
| Packing size (L× W× H )mm | 790×610×1130 | 800×600×1230 | 840×610×1310 | 870×650×1380 |
| Gross/net weight | 125/110KG | 130/112KG | 145/114KG | 156/129KG |

Manual Handwheel & Quick-Open Door
Easy-to-operate handwheel combined with rapid-access door mechanism for efficient and safe use.
Internal Steam Circulation
Ensures even temperature distribution throughout the chamber for consistent and reliable sterilization.
High-Grade 304 Stainless Steel Chamber
Built with corrosion-resistant stainless steel for enhanced durability and long service life.
Built-in Drying Function
Allows sterilization and drying in a single cycle for greater workflow efficiency.
Microprocessor Control System
Fully automated operation with customizable sterilization settings for flexible use.
Safety Door Interlock
Prevents door opening during operation to ensure user safety.
Digital Display & Touch Controls
User-friendly interface with real-time cycle status monitoring.
Standard Test Port
Allows connection for validation and testing of sterilization cycles.
Self-Expanding Silicone Seal
Automatically ensures a tight seal for effective steam containment.
Multi-Level Safety Protections
Over-temperature protection
Automatic pressure release
Low water level alert
Dry-heat protection
Includes Stainless Steel Basket/Bucket
Enables flexible loading of various instruments and materials.
Audible Alert & Auto Stop
Sounds when the cycle ends and shuts off automatically.
Automatic Air Removal & Steam Exhaust
Handles post-cycle venting automatically for operator convenience and safety.
Optional External Printer
Provides hardcopy documentation for compliance and record-keeping.

Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
Related Autoclaves:
We provide a full range of steam sterilizers to meet different needs in hospitals, laboratories, and research institutes. Our products include Vertical Steam Autoclaves with Internal Circulation, Gravity Type Vertical Autoclaves, and Vertical Pre Vacuum Autoclaves for various sterilization requirements. For smaller spaces, we offer Table Top Autoclaves and Table Top Pre Vacuum Autoclaves. For large-volume use, Horizontal Steam Autoclaves and Horizontal Pre Vacuum Autoclaves are available. We also supply Portable Pressure Steam Sterilizers for flexible applications. Whatever your needs, we deliver reliable and efficient sterilization solutions.
