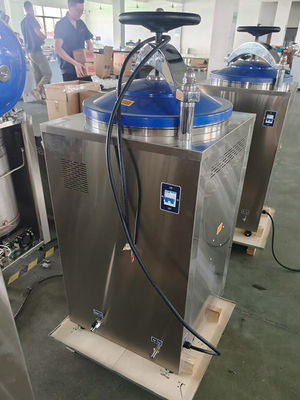

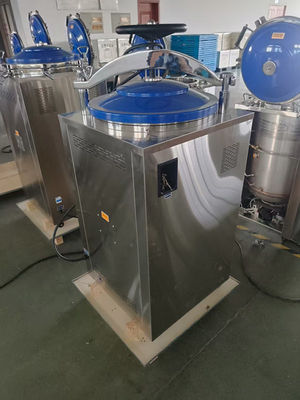

Medical and Laboratory Vertical Steam Sterilizer with Intelligent Control and Drying System

Medical & Laboratory Vertical Steam Sterilizer with Intelligent Control and Drying System (STV-H Series)

Product Overview

The Stertek STV-H Series Vertical Pressure Sterilizer Autoclave is a high-efficiency and fully automatic autoclave designed for hospitals, laboratories, universities, and research institutes.
It provides fast, safe, and reliable sterilization for surgical instruments, glassware, culture media, dressings, and other temperature-resistant items.
Built with premium stainless steel and equipped with microcomputer control, it ensures accurate sterilization, complete drying, and long-term performance stability.

• Key Features

1. Quick-opening Hand-wheel Door Design — ensures easy and safe chamber sealing.

2. Durable Stainless Steel Construction — both chamber and shell are corrosion-resistant and easy to clean.

3. Microcomputer Intelligent Control — precise setting of sterilization temperature, time, and drying cycle.

4. Three Working Programs — Sterilization / Sterilization + Exhaust / Sterilization + Exhaust + Drying.

5. Automatic Functions

   • Automatic air exhaust and steam release

   • Automatic water filling and discharge

   • Automatic shut-off at end of cycle with buzzer alarm

6. Comprehensive Safety Protection
   Over-temperature, over-pressure, low-water, and anti-dry-burning protection.

7. Self-expanding Silicon Seal — ensures perfect air-tightness under high temperature and pressure.

8. Digital Display with Touch Buttons — user-friendly interface for real-time monitoring.

9. Optional Printer — for sterilization cycle recording.

• Applications

  • Suitable for sterilizing surgical instruments and medical dressings

  • Ideal for glassware, culture media, and laboratory utensils

  • Applicable for non-sealed liquid preparations

  • Widely used in hospitals, laboratories, research institutes, and pharmaceutical facilities

• Technical Parameters

• Safety & Reliability

1. Safety Valve automatically releases excess pressure above 0.24 MPa.

2. Double Interlock System prevents door opening before pressure reaches 0 MPa.

3. Circuit Protection: automatic power-off when water is low or temperature exceeds limit.

4. Conforms to National Safety Standard GB150 for pressure vessels.

• Why Choose Stertek?

1. 10+ years of experience in sterilization equipment manufacturing

2. Professional R&D and after-sales team for global clients

3. Customizable models and accessories available

4. CE, ISO, and pressure vessel certifications

5. Fast response and reliable technical support

•  Standard Accessories

• Stainless steel basket or bucket × 1 / 2

• Drain pipe (2 m)

• User manual & warranty card
