Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave

Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave
Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave

Large Image :  Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-HV100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave

Description
Capacity: 100L Door Structure: Handwheel Door
Baskets: 2 Pcs Sterilizing Baskets Data: Printer Equiped
Material: Stainless Steel 304 Drying Function: 100% Drying
Chamber Size: ∅400*650mm Net Weight: 168kg
Working Temp.: 138℃ Working Press.: 0.25Mpa
Highlight:

automated Vertical Autoclave Machine

,

Build In Printers Vertical Autoclave Machine

,

Build In Printers Pressure Steam Autoclave

Fully automatic Stainless Steel Build In Printers Autoclave Vertical 100 litres

This vertical autoclave vertical 100 litres are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media etc.

Main Parameter:

Technical DataMODEL STV-HV100
Chamber volume 100Lφ440×650mm
Design pressure 0.3MPa
Design temperature 150℃
Max. working pressure 0.25MPa
Max. working temperature 138℃
Heat average ≤±1℃
Timer range 0 - 99min
Power (3.2 + 1.9)KW/AC220V.50Hz
Overall dimension(mm) 820×560×1270
Transport dimension(mm) 950×680×1430

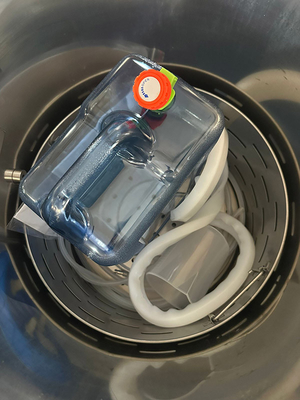

Detailed picture of Pulse Vacuum Steam Sterilizer

Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave 0

Features of Vertical Vacuum Autoclave

  1. Full Stainless Steel Construction
    Durable, corrosion-resistant chamber and body ensure long-term use and hygiene compliance.

  2. Quick-Open Door with Hand Wheel Design
    Manual hand wheel structure for fast, safe, and reliable chamber access.

  3. Advanced Door Safety Lock System
    Prevents accidental opening under pressure for maximum operator safety.

  4. Fully Automatic Computer Control
    Intelligent operation covering water filling, heating, sterilization, steam exhaust, and drying—all in one cycle.

  5. Digital Display with Touch Control Panel
    Real-time process visibility and easy operation via modern touch-key interface.

  6. Built-in Over-Temperature and Over-Pressure Protection
    Automatic system safeguards to ensure safe and stable sterilization performance.

  7. Steam-Water Internal Circulation System
    No external steam discharge—keeping the work environment clean, dry, and eco-friendly.

  8. Automatic Water Shortage Protection
    Alerts and halts the process in case of insufficient water level, protecting the equipment and load.

  9. Self-Inflating Silicone Seal
    Ensures airtight sealing during the sterilization cycle without manual adjustment.

  10. Automatic Shut-off with Audible Reminder
    Machine powers off and emits a buzzer sound once sterilization is complete.

  11. Equipped with Two Stainless Steel Sterilization Baskets
    Allows flexible and efficient loading of medical or laboratory instruments.

  12. Integrated Drying Function
    Thorough post-sterilization drying for improved effectiveness and usability.

Vacuum Autoclave Application:
Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

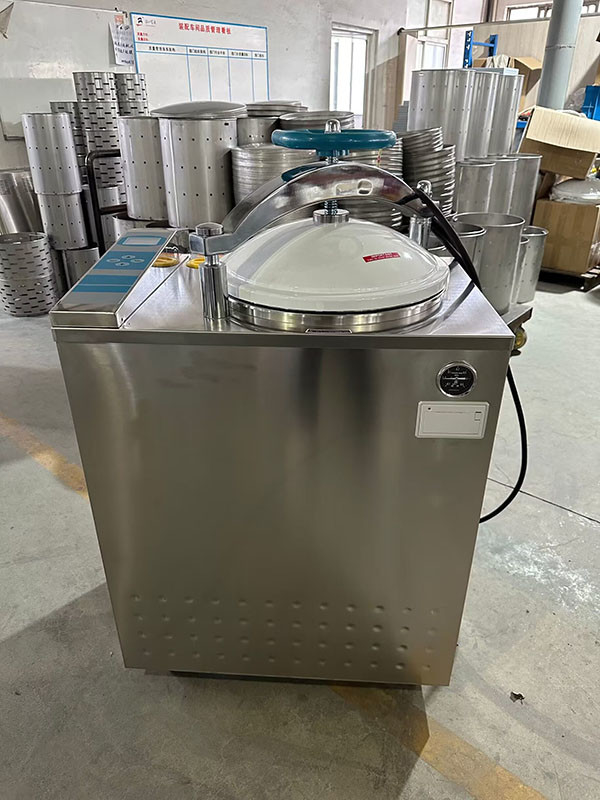

Our Factory

Automated Vertical Autoclave Machine Build In Printers Vertical 100 Litres Pressure Steam Autoclave 1

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support do you offer? Is global support available?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the products?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

In addition to this Vertical Pulsating Vacuum Autoclave, we also offer Vertical Gravity Autoclaves, Vertical Internal Circulation Autoclaves, Tabletop Steam Sterilizers, Tabletop Vacuum Autoclaves, Horizontal Steam Sterilizers, Horizontal Vacuum Steam Sterilizers, and Portable Autoclaves.
