50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer

50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer
50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer 50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer

Large Image :  50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-V 50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer

Description
Capacity: 50L Door Type: Handwheel Door

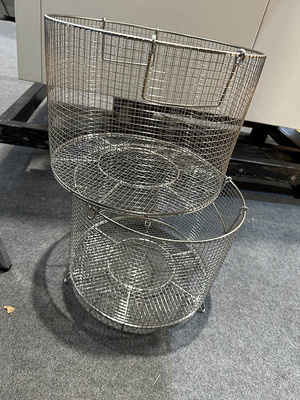

Number Of Baskets: 2 Pcs Sterilizing Baskets Control Display: Touch Screen Display
Data Recording: Printer Equiped Body Material: Stainless Steel 304
Chamber Dimention: ∅400*505mm Weight: 118kg
Working Temp.: 134℃ Working Press.: 0.22Mpa
Highlight:

Drying Function Vertical Autoclave Machine

,

Automatic Control Vertical Autoclave Machine

,

Drying Function pulsating vacuum sterilizer

50L Fully Automatic Control with Drying Function Pulsating Vacuum Autoclave

This Class B Autoclave Sterilizer mainly used in hospital, laboratories, universities and other institutes where users need to sterilize temperature resistance items. It is ideal equipment for surgical instruments, fabrics, glasses, culture media etc.

Main Parameter:

Model STV-V50
Volume 50L
Power 3.5kW
Voltage AC 220V,50HZ
Rated working pressure 0.22Mpa
Rated working temperature 134℃
Sterilization temperature 50℃~134℃
Sterilization time setting range 4~120 min
Drying time setting range 0~240min
Chamber volume  Ø400×505
Bucket dimension Ø380×430
Basket dimension(optional) Ø360×280×1
Outer dimension 630×530×1180
Packing size (L× W× H )mm 800×600×1230
Gross/net weight 138/118KG

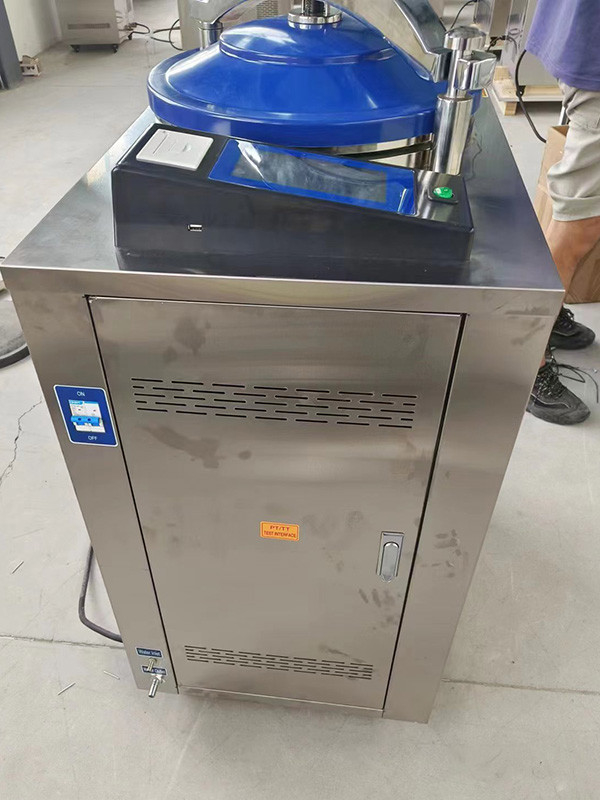

Pulse Vacuum Vertical Autoclave Detailed Picture

50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer 0

Features of Vertical Pulsating Vacuum Sterilizer

  1. Equipped with hand wheel translation and quick-opening structure for easy and secure operation.

  2. Three times pre-vacuum ensures efficient air removal for thorough sterilization.

  3. Constructed with high-quality stainless steel material for durability and corrosion resistance.

  4. Microcomputer automatic control system allows flexible setting of sterilization parameters.

  5. Safety interlocking device prevents accidental door opening during the sterilization process.

  6. User-friendly touch screen display shows real-time operating status and parameters.

  7. Designed with a standard test interface for convenient performance testing (e.g., BD test, vacuum test).

  8. Features a self-expanding sealing ring for superior airtight performance.

  9. Includes drying function, ideal for instruments and dressing sterilization.

  10. Integrated automatic protection system, including over-temperature protection, over-pressure self-discharge protection, low water level protection, and anti-dry burning safety.

  11. Comes with stainless steel sterilization bucket or basket for versatile loading.

  12. Buzzer reminder after sterilization completion with automatic stop function.

  13. Supports automatic discharge of cold air and steam exhaust after sterilization for improved efficiency.

  14. Built-in internal printer to automatically record sterilization data for traceability.

Applications of Automatic Steam Sterilization Equipment

  1. Laboratory / Scientific Research:
    Suitable for glassware, culture media, surgical instrument kits (requires matching with instrument baskets), and biological waste (must be processed in accordance with local regulations).
  2. Hospital / Clinic / Medical Facilities:
    Ideal for sterilizing surgical instrument sets, dressing kits, and medical fabrics.
  3. Pharmaceutical / Bioengineering / Food Industry:
    Applied to the sterilization of production containers, laboratory tools, raw materials, and packaging materials (compatibility must be confirmed prior to use).

50L Vertical Autoclave Machine Automatic Control Drying Function pulsating vacuum sterilizer 1

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: Verical autoclave delivery time is about 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support do you offer for the vertical autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the vertical autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Related Autoclaves:



In addition to this Vertical Pre Vacuum Steam Sterilizer, we also supply a wide range of sterilization equipment, including Vertical Gravity Steam Autoclaves, Vertical Internal Circulation Steam Sterilizers, Tabletop Pressure Steam Sterilizers, Tabletop Vacuum Steam Autoclaves, Horizontal Cylindrical Steam Sterilizers, Horizontal High Vacuum Autoclaves, and Portable Pressure Autoclaves. These sterilizers are designed to meet the sterilization needs of hospitals, clinics, laboratories, dental practices, and research institutions.
