Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave

Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave
Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave

Large Image :  Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-HC35
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave

Description
Door Structure: Handwheel Door Number Of Baskets: 2 Pcs Sterilizing Baskets
Display: LCD Display Data Recording: Printer Equiped
Material: Stainless Steel 304 Drying Function: Optional Drying Function
Chamber Size: ∅318*450mm Net Weight: 95kg
Working Temp.: 138℃ Working Press.: 0.25Mpa
Highlight:

lcd display vertical autoclave machine

,

handwheel door vertical autoclave machine

,

lcd display vertical laboratory autoclave

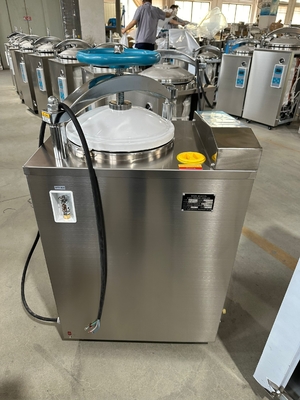

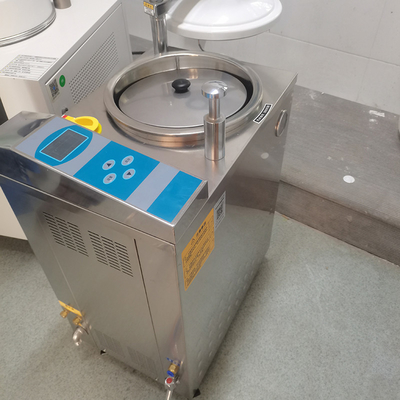

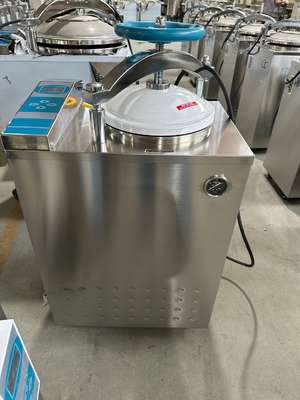

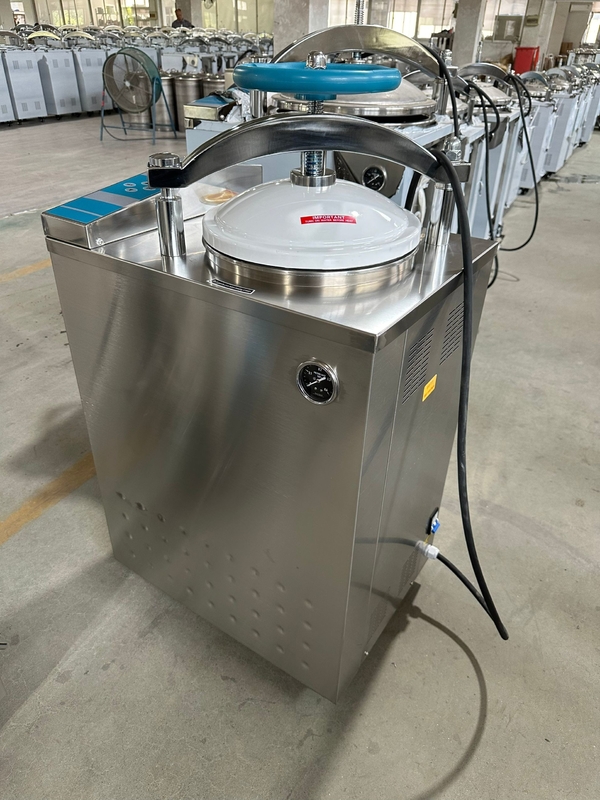

Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave

The vertical pressure steam sterilizers are assembled with heating system, micro - computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are suitable for sterilizing equipment, dressings, containers, liquids, culture medium, waste, etc. in hospitals, disease control centers, P2 biological laboratories and blood stations, etc. of scientific research institutes.

Application:

  • Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
  • Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
  • Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

Main Parameter:

Model

STV-HC35

STV-HC50

STV-HC75

STV-HC100

Volume

35 Liters

50 Liters

75 Liters

100 Liters

Sterilizing Chamber Volume

Ø318*450mm

Ø340*550mm

Ø400*600mm

Ø440*650mm

Design Pressure

0.3 Mpa

Max Working Pressure

0.25 Mpa

Design Temperature

150°C

Max. Working Temperature

138°C

Timer

0-99 min or 0-99 hour 59 min

Heat Average

≤± 1°C

Power

2.5 KW

AC220V 50Hz

3 KW

AC220V 50Hz

4.5 KW

AC220V 50Hz

Overall Dimension(mm)

710*490*1150

710*490*1150

750*510*1250

750*510*1250

Transport  Dimension(mm)

740*550*1310

740*550*1310

780*600*1420

780*600*1420

Gross Weight/Net Weight

120kg/95kg

124kg/100kg

137kg/111kg

155kg/129kg

Product Details

Internal Steam Cycle Safety Lock Digital Display Vertical Autoclave 0

Product Features:

  1. Full Stainless Steel Construction
    Durable, corrosion-resistant chamber and body ensure long-term use and hygiene compliance.

  2. Quick-Open Door with Hand Wheel Design
    Manual hand wheel structure for fast, safe, and reliable chamber access.

  3. Advanced Door Safety Lock System
    Prevents accidental opening under pressure for maximum operator safety.

  4. Fully Automatic Computer Control
    Intelligent operation covering water filling, heating, sterilization, steam exhaust, and drying—all in one cycle.

  5. Digital Display with Touch Control Panel
    Real-time process visibility and easy operation via modern touch-key interface.

  6. Built-in Over-Temperature and Over-Pressure Protection
    Automatic system safeguards to ensure safe and stable sterilization performance.

  7. Steam-Water Internal Circulation System
    No external steam discharge—keeping the work environment clean, dry, and eco-friendly.

  8. Automatic Water Shortage Protection
    Alerts and halts the process in case of insufficient water level, protecting the equipment and load.

  9. Self-Inflating Silicone Seal
    Ensures airtight sealing during the sterilization cycle without manual adjustment.

  10. Automatic Shut-off with Audible Reminder
    Machine powers off and emits a buzzer sound once sterilization is complete.

  11. Equipped with Two Stainless Steel Sterilization Baskets
    Allows flexible and efficient loading of medical or laboratory instruments.

  12. Integrated Drying Function
    Thorough post-sterilization drying for improved effectiveness and usability.
