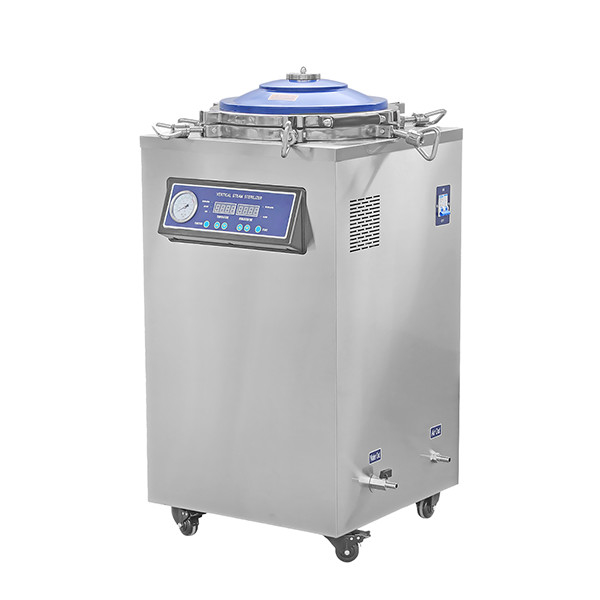

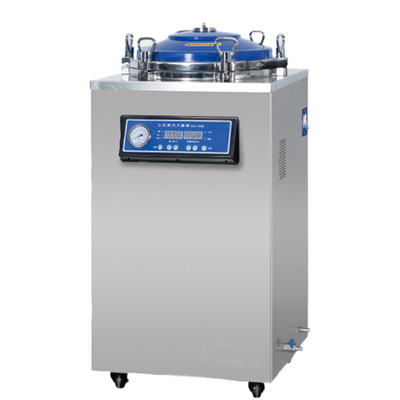

Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System

Customer Reviews
We deployed over 30 units of Stertek’s vertical autoclaves in public hospitals across Kenya. The products are user-friendly, durable, and perfectly adapted to our local conditions.

—— Health Mission Africa

I'm Online Chat Now

Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System

Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System
Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System

Large Image :  Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System

Product Details:
Place of Origin: China
Brand Name: Stertek
Certification: CE, ISO13485,ISO9001
Model Number: STV-LD35 to STV-LD150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 448USD-3000USD
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Contact Now Chat Now

Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System

Description
Machine Volume: 35l, 50l, 75l, 100l, 120l, 150l Door Structure: Handwheel Door
Number Of Baskets: 2 Pcs Sterilizing Baskets Display: LED Display
Data Recording: Printer Equiped Material: Stainless Steel 304
Drying Function: Optional Water: Adding Maually
Max Working Temp.: 134℃ Working Press.: 0.22Mpa
Highlight:

Digital Displayed Stainless Steel Vertical Autoclave

,

Stainless Steel Vertical Autoclave

,

Stainless Steel Sterilizer With Heating System

Bolt Digital Displayed Stainless Steel Structure Vertical Autoclave

This vertical pressure steam autoclave are assembled with a heating system, a micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Verticlave Autoclave Parameter:

Model

STV-LD35

STV-LD50

STV-LD75

STV-LD100

STV-LD120

STV-LD150

Volume

35L

50L

75L

100L

120L

150L

Power

3.5kW

3.5kW

4.5kW

4.5kW

4.5kW

6.0KW

Voltage

AC 220V,50HZ

Rated working pressure

0.22Mpa

Rated working temperature

134

Sterilization temperature

50℃~134

Sterilization time setting range

4~120 min

Drying time setting range

0~240min

Chamber volume

Ø300×500

Ø350×525

Ø400×625

Ø450×650

Ø450×760

Ø500×780

Bucket dimension

Ø280×400

Ø330×480

Ø380×560

Ø420×540

Ø420×660

Ø470×720

Basket dimension(optional)

Not optional

Ø320×240×2

Ø360×280×2

Ø410×300×2

Ø410×350×2

Ø460×350×2

Outer dimension

400×400×860

480×480×960

525×567×1020

555×555×1080

555×599×1200

605×649×1210

Packing size

(L× W× H )mm

550×500×1030

580×630×1100

630×680×1190

690×650×1230

690×650×1330

750×700×1370

Gross/net weight

58/41KG

75/53KG

82/61KG

103/78KG

108/82KG

116/90KG

Bolt Gravity Steam Autoclave Details

Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System 0

Vertical N Class Vertical Autoclave Features:

Structure & Build

  • Bolt-locking structure for reliable sealing

  • High-quality stainless steel construction

  • Self-expanding sealing system

  • Includes stainless steel bucket or basket

Control System

  • Microcomputer automatic control with freely adjustable sterilization parameters

  • Digital display with touch button interface

  • Standard test interface

Safety & Protection

  • Safety interlocking device

  • Integrated automatic protection functions:
     • Over-temperature protection
     • Over-pressure protection with self-discharge
     • Low water level protection
     • Anti dry-burning

Sterilization Performance

  • Automatic cooling air discharge

  • Automatic steam exhaust at the end of sterilization

  • Buzzer reminder and automatic stop after cycle completion

Application of  Verticlave Steam Autoclave Sterilizer :

  • Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
  • Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
  • Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

Our Factory

Bolt Digital Displayed Stainless Steel Vertical Autoclave With Heating System 1

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the steam autoclave have?
    A: CE, ISO 13485, ISO 9001.
  4.  Q: What warranty and after-sales support of vertical autoclave do you offer?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the top loading autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
